WT63B Pen Vibration Analyser

Code: 4316

Compact, Robust Digital Vibration Analyser.
Measuring Range Acceleration: 0.1~199.9m/s
Measuring Range Velocity：0.1~1999.9mm/s rms
Measuring Range Displacement：0.001~1.999 mm (P﹣P)
Measuring frequency of Acceleration: 20Hz~1KHz (LO)；1KHz~15KHz (HI)
Measuring frequency of Velocity: 20Hz~1KHz (LO)
Measuring frequency of Displacement: 20Hz~1KHz (LO)

Features:

Digital Pen Vibration Meter

This product is based on piezoelectric effect of artificially polarized ceramics. It is suitable for conventional vibration measurement of mechanical equipment, especially for rotating and reciprocating machinery.

It can measure vibration displacement, velocity and acceleration, and is widely used in fields like machinery manufacturing, electric metallurgy and general aerospace.

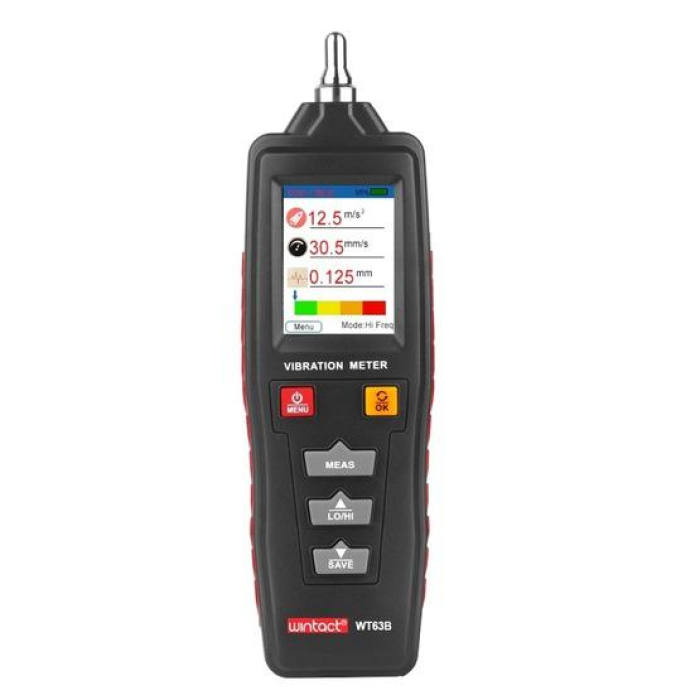

Full Colour LCD displays measurement result and conditions directly.

Measure acceleration velocity and displacement.

Different vibration frequency selection High frequency (1KHz~10KHz) low frequency (20Hz~1KHz)

High sensitivity probe for accurate measurement.

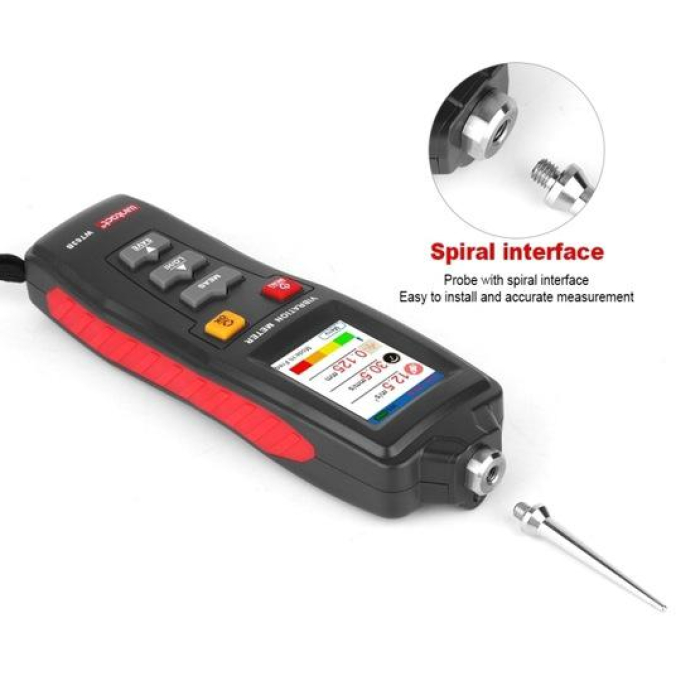

Provides long and short probe head each one is suitable for different situation measurement.

Use hi-sense of vibration sensor measuring accurately Shows recorded Graphs and Table format on device.

Low battery indication

Auto turn off function

On board Recording

The unit is CE certified, so that you may be assured that you are getting a great quality product.

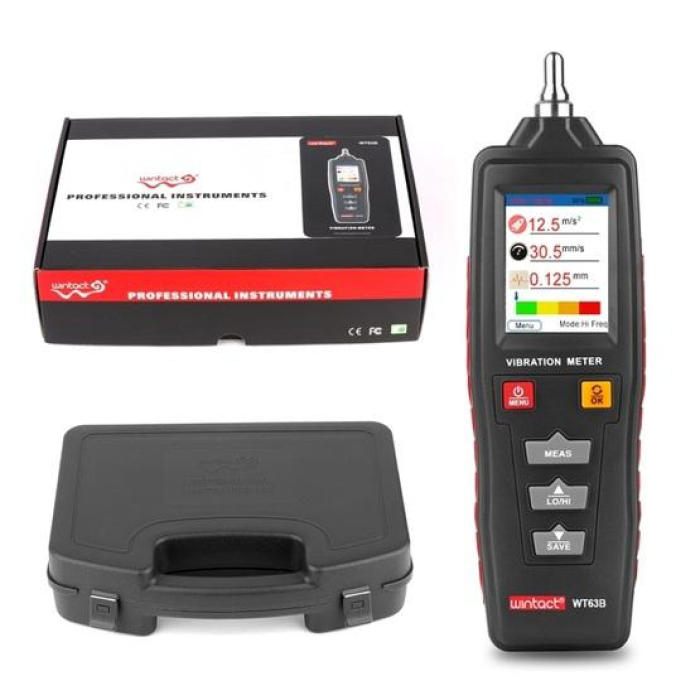

This device comes in a Hard Carry Case.

If you cant find what you are looking for, give us a call, or drop us an email, we are always ready and willing to assist.
