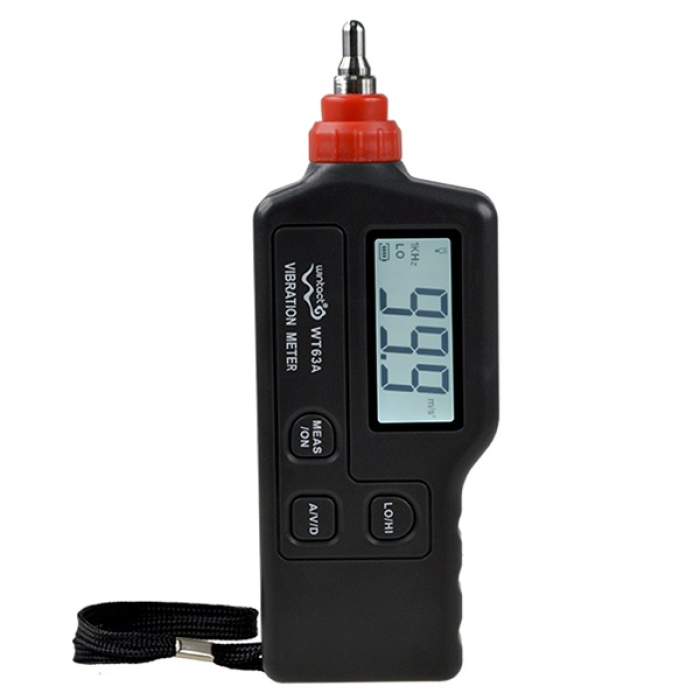

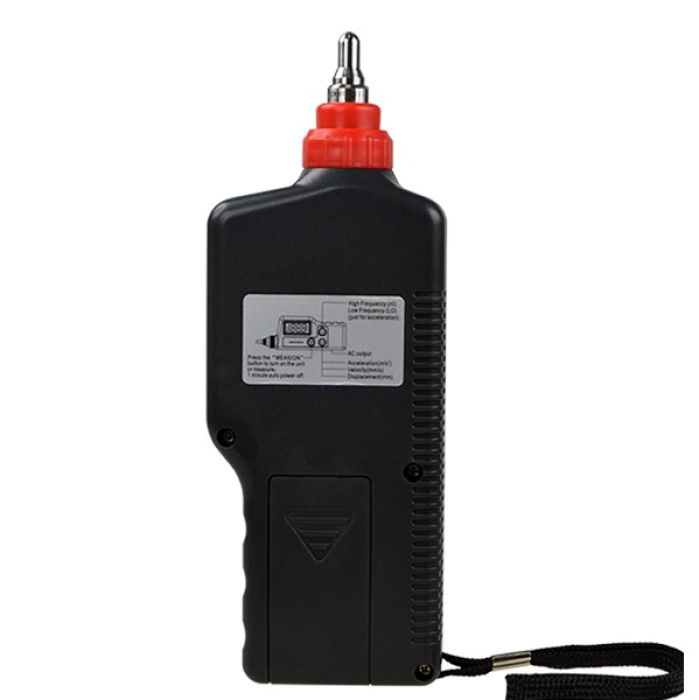

WT63A Pen Vibration Meter

Features:

This Compact High Quality Robust Digital Vibration Meter, WT63A,  adopts piezoelectric effect of artificial polarized ceramic by design.

It is suitable for monitoring of all kinds of vibrating mechanical facility specially the vibration measurement of rotating and reciprocating machinery.

The unit can measure acceleration, velocity and displacement which is widely used in mechanical manufacture electric power metallurgy and general aviation field etc..

The unit is CE certified, so that you may be assured that you are getting a great quality product.

This device comes in a Hard Carry Case.

LCD displays measurement result and conditions directly.

Measure acceleration velocity and displacement.

Different vibration frequency selection High sensitivity probe for accurate measurement

Provides long and short probe head each one is suitable for different situation measurement.

Use hi-sense of vibration sensor measuring accurately Equipped with AC signal output interface

Low battery indication

Auto turn off function

LCD back light function

Maximum value hold function

Specifications:

• Measuring Range Acceleration:  0.1~199.9m/s
• Measuring Range Velocity：0.1~199.9mm/s rms
• Measuring Range Displacement：0.001~1.999 mm (P﹣P)
• Accuracy: ±5%
• Measuring frequency of Acceleration: 10Hz~1KHz (LO)；1KHz~15KHz (HI)
• Measuring frequency of Velocity: 10Hz~1KHz (LO)
• Measuring frequency of Displacement: 10Hz~1KHz (LO)
• LCD display: 3 1/2 digits display
• Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)
• Operation temperature: 0~40℃
• Single output: AC output 2V peak(display full scale)Load impedance 10K ohm or more earphones can be connected
• Low battery indication
• Auto power off
• LCD backlight display
• Power supply: 1 x 9V Battery
• Dimension: 180*66*30mm
