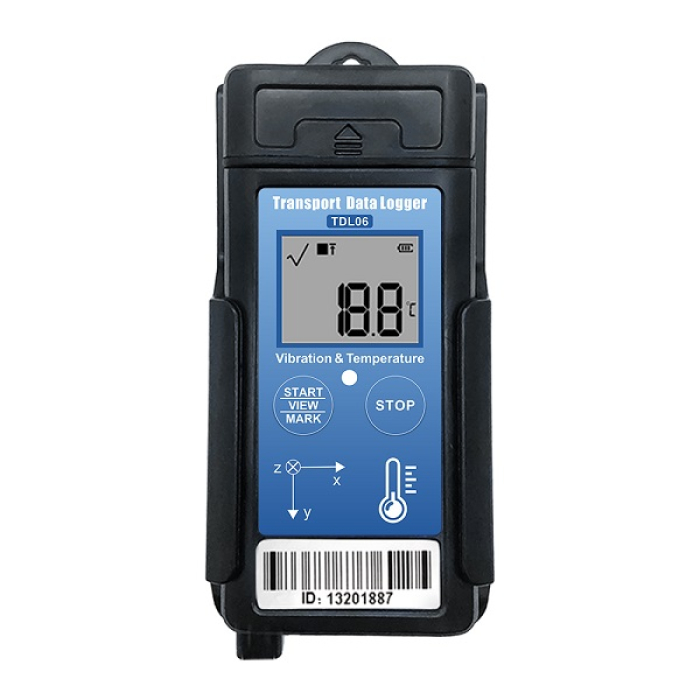

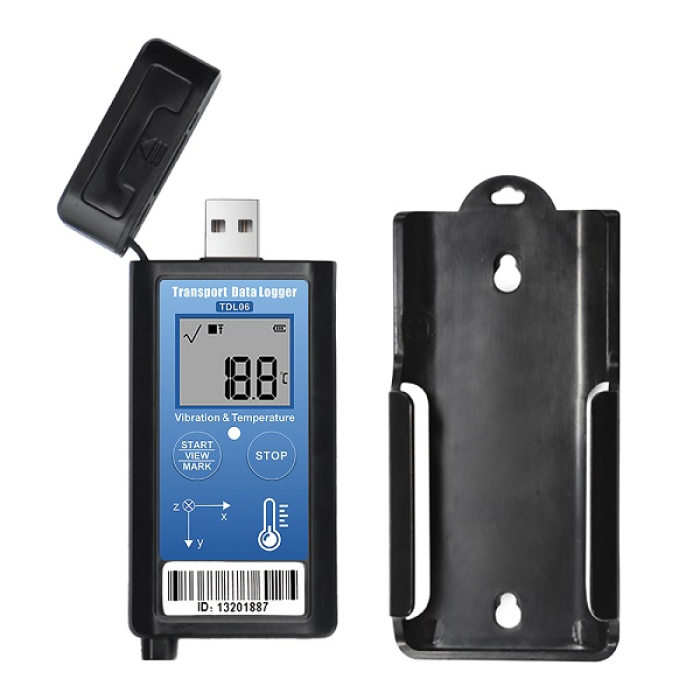

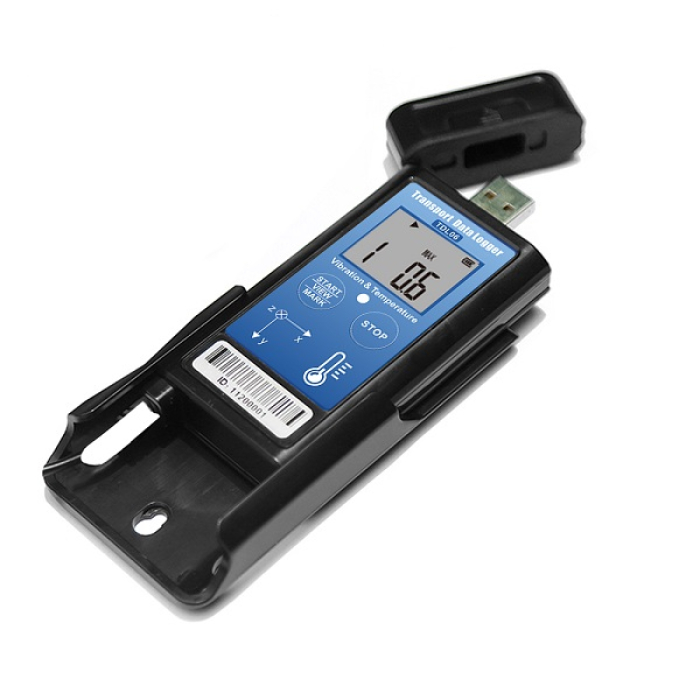

TDL06 - Transport Data Logger (3 axis Vibration/Shock and Temperature)

Features:

The TDL06 Transport Data Logger is a product used to monitor 3 axis vibration and temperature in transit.

It is primarily suitable for the transportation of sensitive goods such as food, chemicals, precision machinery, artwork, electronic products, film materials, and glass. Vibration and temperature during transportation are crucial factors that can affect product quality.

TDL06 can help you collect data for safe transportation.

Specifications:

Sensor type: Built-in NTC temperature sensor, built-in three-axis acceleration sensor

Acceleration sampling rate

Unit: HZ

50, 100, 200, 400, 1344HZ (Optional)

Acceleration sampling mode:

Timing collection, trigger threshold collection

Timing collection, trigger threshold collection

Acceleration: ±27g (three-axis vector sum); ±16g (Single axle)

Temperature: -30℃ ~70℃

Resolution: 0.1℃, 0.1g

Data capacity: 34560 measurement values

Usage method: Multi-time (Reusable Logger)

Start method: Press button or Time Scheduled Activation

Logging interval: User-configurable (10 seconds to 99 hours)

Start delay: User-configurable (0~ 72 hours)

Alarm range: User-configurable

Report format: PDF and CSV format data report

Interface: USB2.0

Waterproof level: IP65

Size: 115mm*50mm*20mm

Weight: 98g

Battery type: ER14250 (Replaceable)

Battery life: 7 months (at 25℃ ambient temperature, and with the

default configuration)
