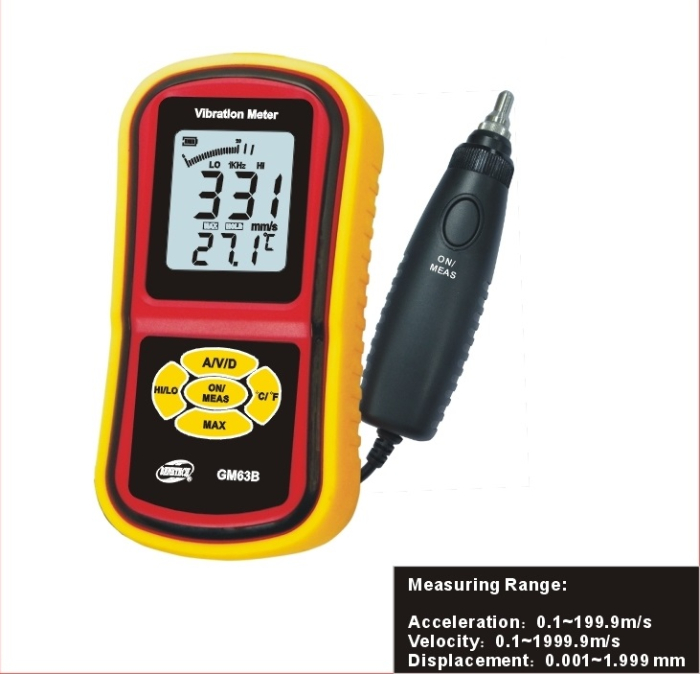

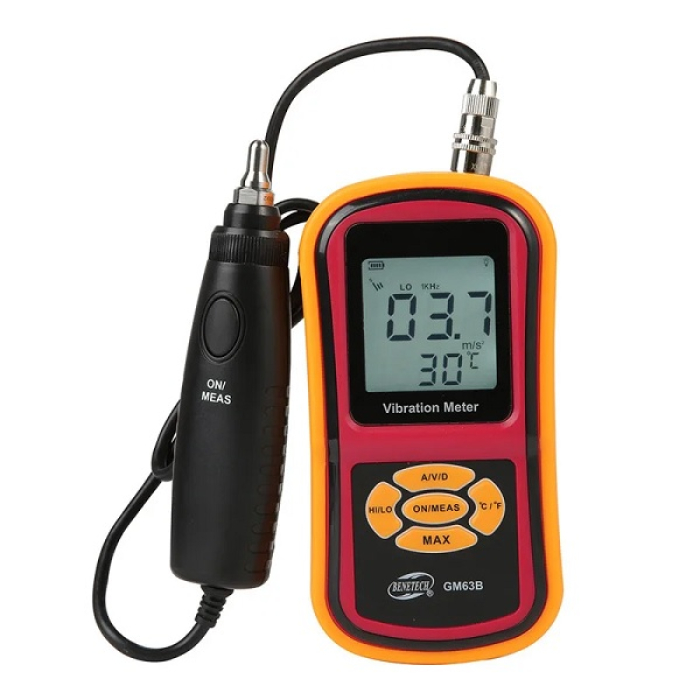

GM63B Vibration Meter

Features:

This Compact High Quality Robust Digital Vibration Meter, GM63B,  adopts piezoelectric effect of artificial polarized ceramic by design.

LCD displays measurement result and conditions directly.

Measure acceleration velocity and displacement.

Selective vibration characteristic Use hi-sense of vibration sensor measuring accurately

Equipped with two probes (S and L) to adapt the different measurement requirements

Provided with a magnetic probe to fit those hard to hold by hand places

Low battery indication

Auto turn off function

LCD back light function

Maximum value hold function

Temperature unit Celsius Degree / Fahrenheit Degree selection

It is suitable for monitoring of all kinds of vibrating mechanical facility specially the vibration measurement of rotating and reciprocating machinery.

The unit can measure acceleration, velocity and displacement which is widely used in mechanical manufacture electric power metallurgy and general aviation field.

The unit is CE certified, so that you may be assured that you are getting a great quality product.

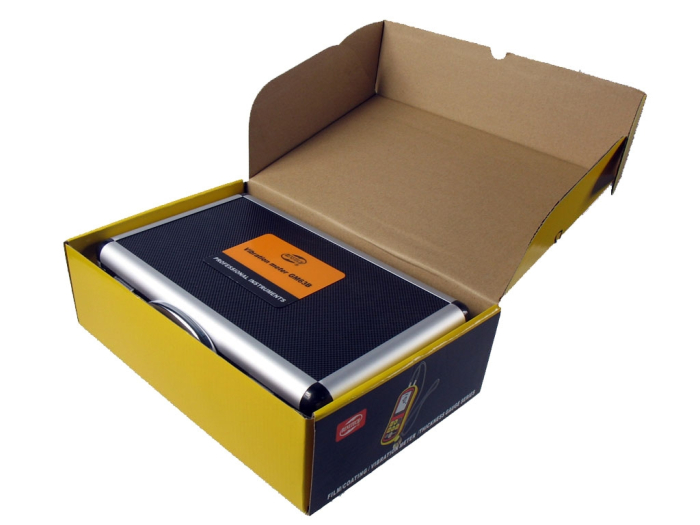

This device comes in a Hard Carry Case.

Specifications:

• Measuring Range Acceleration:  0.1~199.9m/s
• Measuring Range Velocity：0.1~1999.9m/s
• Measuring Range Displacement：0.001~1.999 mm (P﹣P)
• Accuracy: ±5%
• Measuring frequency of Acceleration: 10Hz~1KHz (LO)；1KHz~15KHz (HI)
• Measuring frequency of Velocity: 10Hz~1KHz (LO)
• Measuring frequency of Displacement: 10Hz~1KHz (LO)
• LCD display: 3 1/2 digits display
• Vibration pickup: Piezoelectric ceramic accelerometer (Shear-type)
• Operation temperature: 0~40℃
• Equipped two probes (S and L) to adapt the different measurement requirement
• Magnetic probe included, for those hard to hold conditions
• Maximum value hold function
• Ambient temperature reading
• Low battery indication
• Auto power off
• LCD backlight display
• Power supply: 1 x 9V Battery
• Weight: 200g
• Dimension: 70*145*28mm
