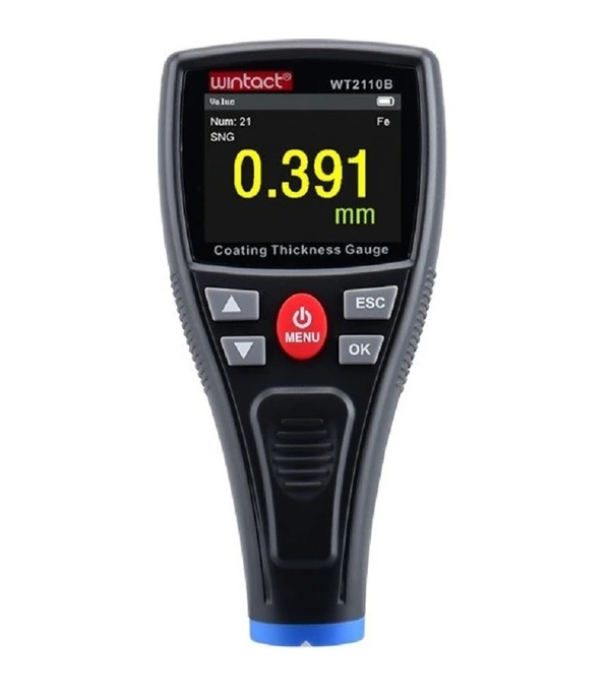

WT2110B Film/Coating Thickness Gauge (Bluetooth)

Code: 5075

This product is a color-screen portable coating thickness gauge with high-definition display, which can quickly, non-destructively and accurately measure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates.

At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry,commodity inspection and other testing areas.

Features:

- Menu operation on full color-screen HD display. (screen brightness selection)

- Measurement of non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal substrates

- Built in Bluetooth for Data recording

- Two measurement methods: single measurement, continuous measurement.

- Three calibration modes: basic, offset, zero calibration.

- Metric/imperial unit

- Storage function.

- Screen rotation, charge protection, multi-interface displays,

- Automatic shutdown.

Specifications:

Measurement range: 0~1500um/0~59mil

Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm

Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)

Minimum diameter of magnetic metal substrate: 12mm
