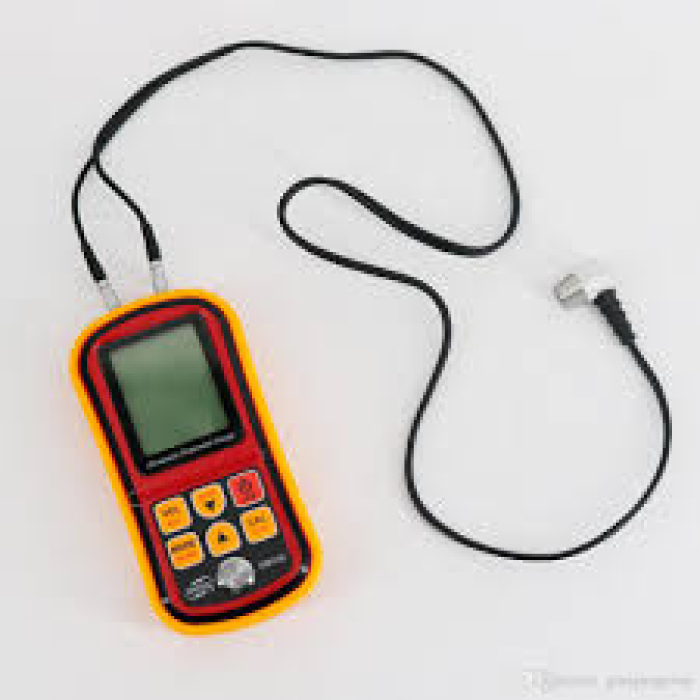

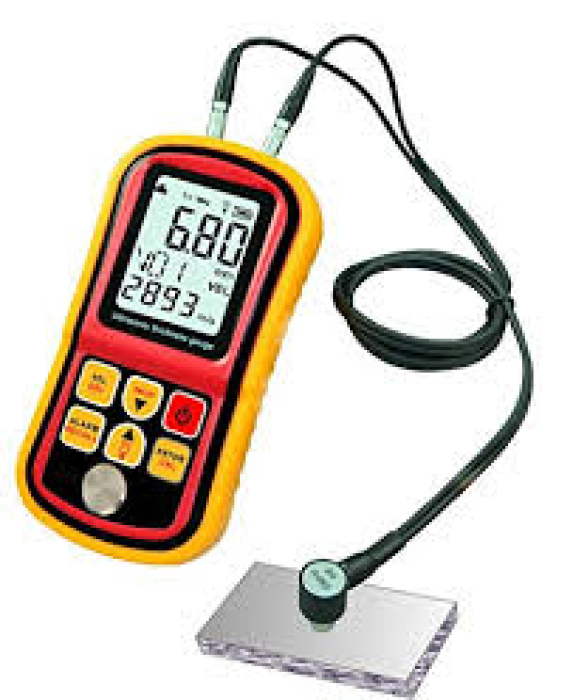

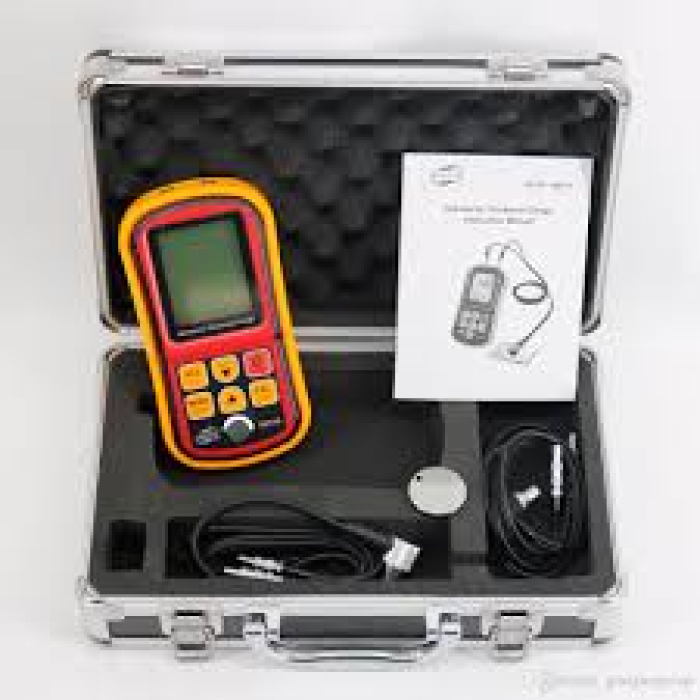

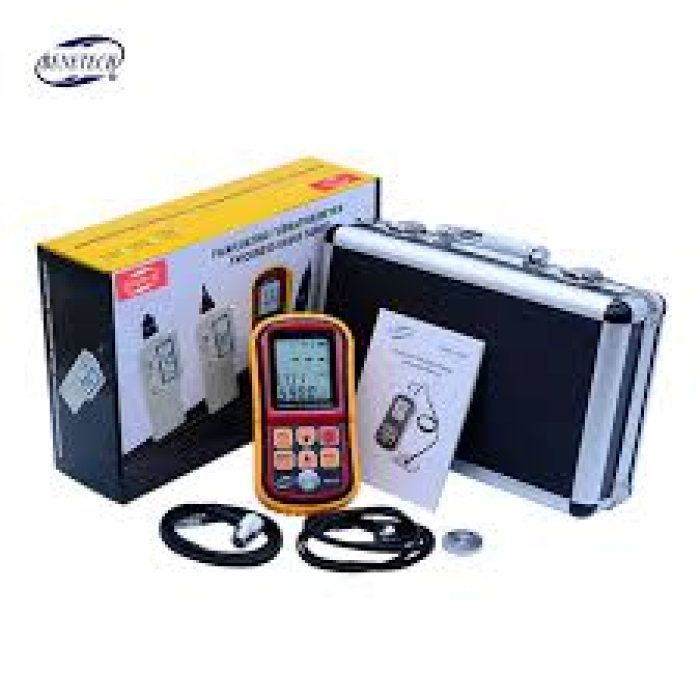

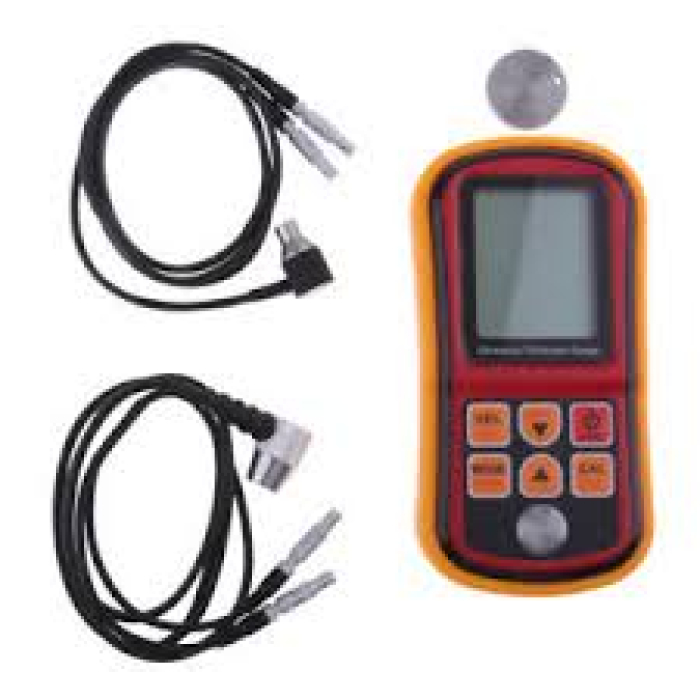

GM130 Ultrasonic Thickness Gauge

Code: 4148

Measuring range: 1.0~300mm (Steel)
Accuracy: ±(1%H+0.1) mm
Resolution: 0.01mm
Sound velocity range: 1000~9999m/s
Working frequency: 5MHz
Minimum limit for tube measuring:
Φ10mm probe: Φ20*3mm (Steel)
Φ6mm probe: Φ12*2mm (Steel)
Auto calibration to assure the accuracy

Features:

GM130 ultrasonic Thickness gaugeFor double probe thickness gauge, precision up to 0.01 mm.

Measuring principle of ultrasonic, can apply to make the ultrasonic wave in its internal communications at a constant speed, can get reflection from the back of a variety of material thickness measurement.

The ultrasonic thickness gauge is designed to measure materials which are ultrasonic conductor such as metal, plastic, ceramic, glass and more

Able to measure the sound velocity of a given material

Two surfaces of the measuring object must be parallel

This device is CE certified, so you know you are getting a quality product.

Specifications:

Measuring range: 1.0~300mm (Steel)
Accuracy: ±(1%H+0.1) mm
Resolution: 0.01mm
Sound velocity range: 1000~9999m/s
Working frequency: 5MHz
Minimum limit for tube measuring: Φ10mm probe: Φ20*3mm (Steel) Φ6mm probe: Φ12*2mm (Steel)
Auto calibration to assure the accuracy Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.
Data store/ Data recall/ Data delete function
Sound velocity measurement
Metric/Imperial unit selection
Low battery indication
Auto power off
LCD backlight display
Excludes Lubricant and Bottle
