GM220 Film/Coating Thickness Gauge

Features:

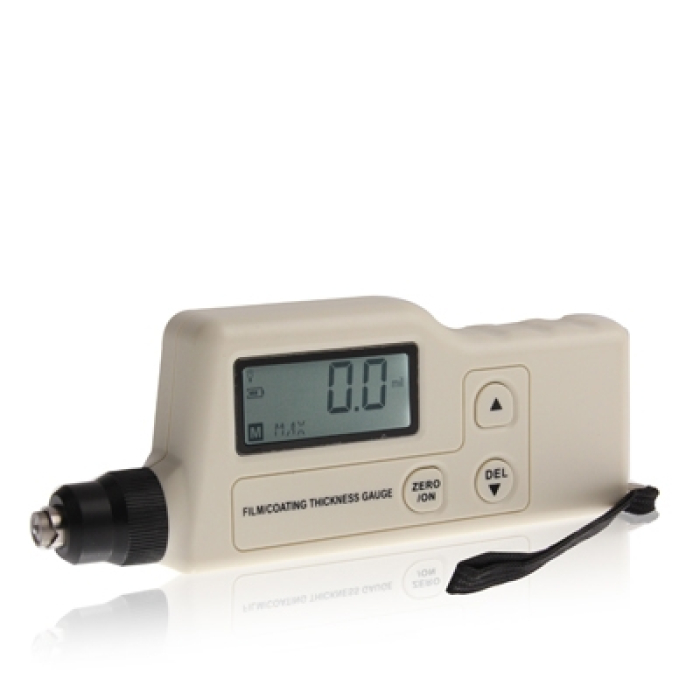

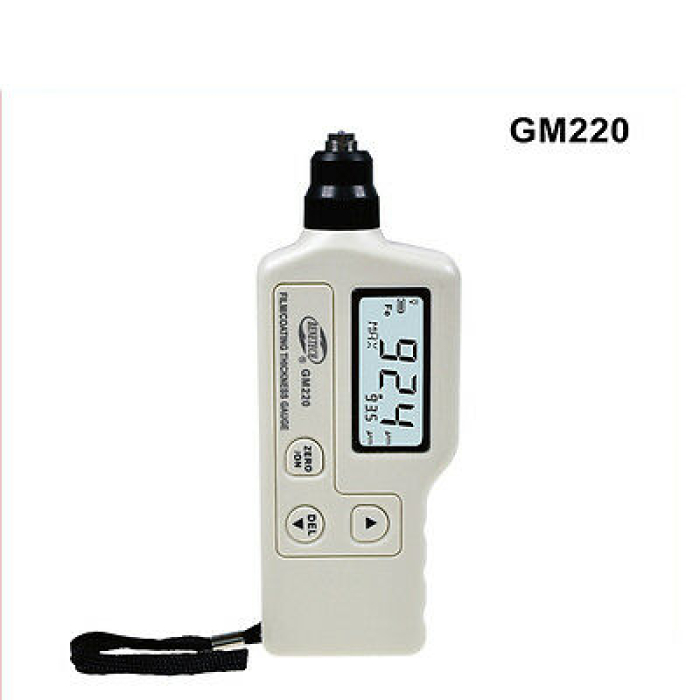

Film/Coating Thickness Gauge GM220 Uses Hi-sensitivity sensor for precise measurement.

This portable product adopts magnetic induction technique for measurement.

The compact design perform fast,precise and non-destructive digital non magnetic coating measurement and plating on steel magnetic conductor.

It is widely used on manufacturing, workshop, chemistry or quality control fields.

Smart Sensor Thickness Meter Testing

1. Measure thickness of surface coatings on metal substrates
2. Single/continuous/differential measurement available
3. Zero-point/2-point/basic calibration available
4. Metric and imperial units of measurement optional

This device is CE certified, so you know you are getting a quality product.

Specifications:

Measuring range：0~1800µm
Accuracy: ±（3%H±1µm）
Resolution: 0.1µm (<100µm) or 1µm(>100µm)
Hi-sensitivity sensor for precise measurement
Calibration Mode: Zero point, two point and basic
Measuring mode: Single, Continually and Difference
Data store/ Data recall/ Data delete function
Data Analysis: Average, Maximum, Minimum,
Standard deviation Beep sound indication
Measure in Metric/Imperial
LCD backlight display
Low battery indication
Auto power off
