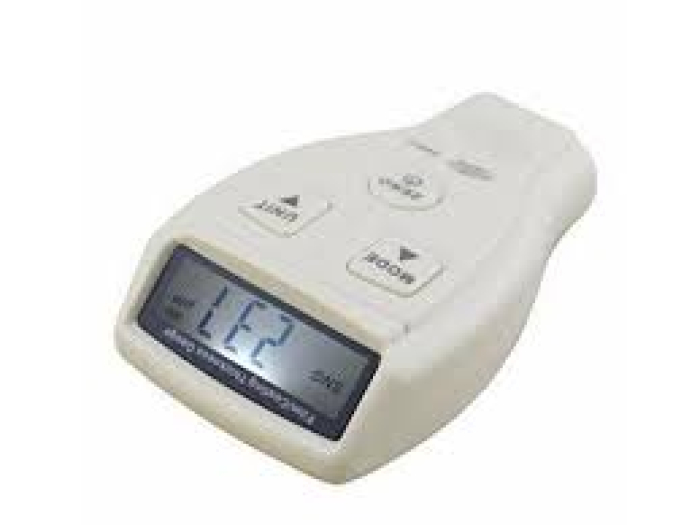

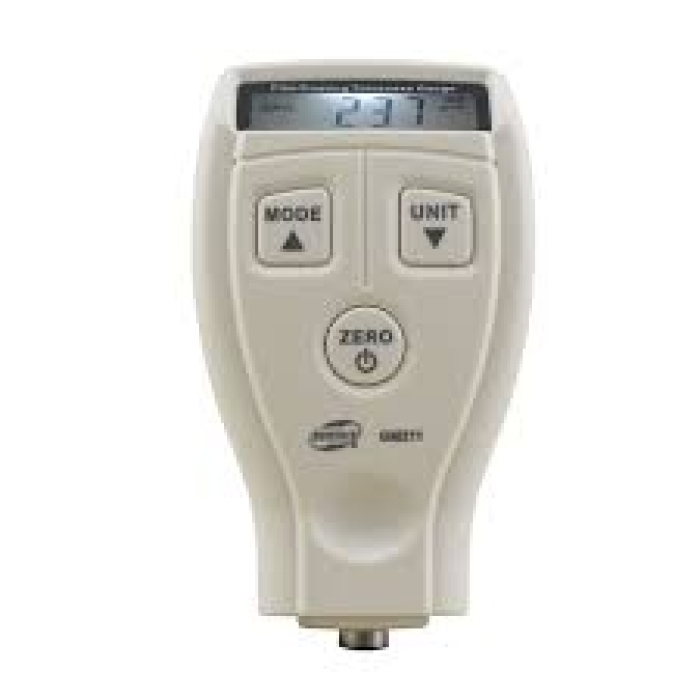

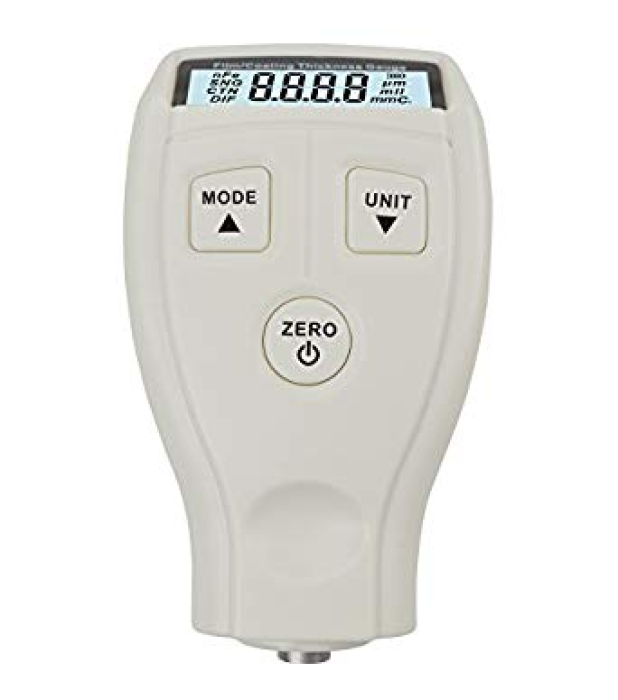

GM210 Film/Coating Thickness Gauge

Features:

High-precision film thickness gauge ideal for paint or film coating thickness measurement,
Measure thickness of surface coatings on metal substrates.
Single/continuous/differential measurement available
Zero-point/2-point/basic calibration available
Metric and imperial units of measurement optional
This device is CE certified, so you know you are getting a quality product.

Specifications:

Measuring range: 0 - 1500um
Resolution: 0.1um(<100um)/1um(>100um)
Measurement error: +-5um
Min diameter of magnetic substrate: 12mm
Min thickness of magnetic substrate: 0.5mm
Min curvature Radius Convex Magnetic Substrate: 2mm
Min curvature Radius Concave Magnetic Substrate: 11mm
Min diameter of non-magnetic substrate: 50mm
Min thickness of non-magnetic substrate: 0.5mm
Operating humidity: 10% - 95% relative humidity
Operating temperature: 0 - 40C
Power Supply: 2*1.5V AAA alkaline battery
