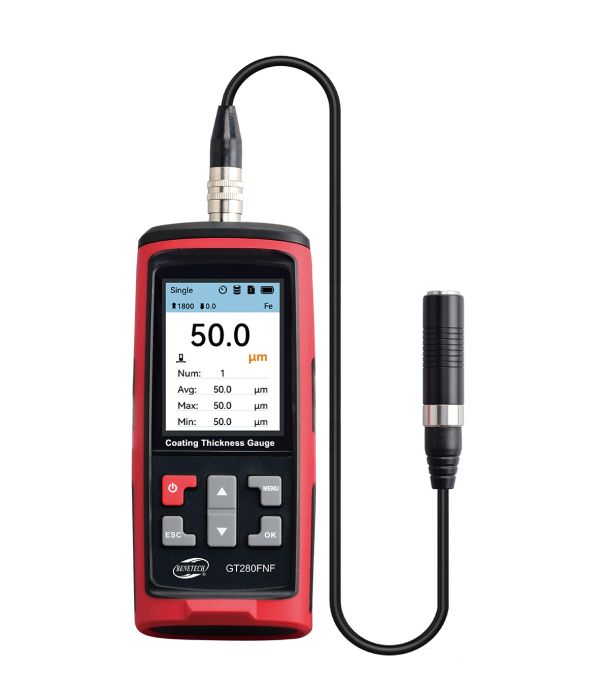

GT280FNF Film/Coating Thickness Gauge

Thickness

Code: 5079

Measurement range: 0~1800um/0~70.8mil

Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm

Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)

Minimum diameter of magnetic metal substrate: 12mm

Minimum thickness of magnetic metal substrate: 0.5mm

Minimum radius of curvature for magnetic convex substrate: 2mm

Minimum radius of curvature for magnetic concave substrate: 11mm

Minimum thickness of non-magnetic metal substrate: 0.5mm

Features:

This product is a portable coating thickness gauge with a color screen and high-definition display.

This unit can quickly, non-destructively, and accurately measure the thickness of non-magnetic coatings on magnetic metal substrates and non-metal coatings on non-magnetic metal substrates.

The GT280FNF can automatically identify magnetic and non-magnetic metal substrates and is widely used in manufacturing, metal processing, chemical industries, and quality inspection fields.

Specifications:

Measurement range: 0~1800um/0~70.8mil
