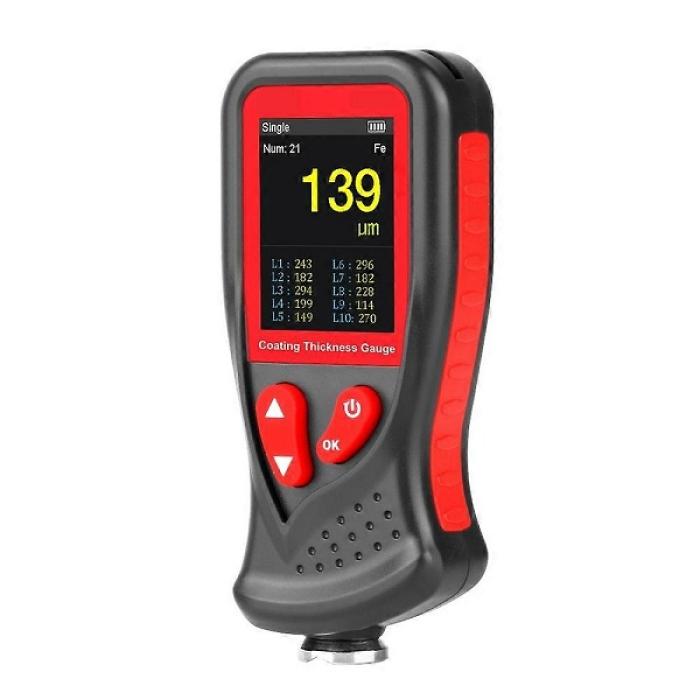

GT231 Film/Coating Thickness Gauge

Thickness

Code: 5174

Measurement range: 0~1800um/0~70.8mil

Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm

Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)

Minimum diameter of magnetic metal substrate: 12mm

Minimum thickness of magnetic metal substrate: 0.5mm

Minimum radius of curvature for magnetic convex substrate: 2mm

Minimum radius of curvature for magnetic concave substrate: 11mm

Minimum thickness of non-magnetic metal substrate: 0.5mm

Includes Rechargeable Batteries and USB Charge Cable

Includes Calibration plates and 5 calibration standards

Comes with Hard Plastic Carry Case and Lanyard

Features:

The GT231 Portable Coating Thickness Meter, with high definitrion display, can quickly and non-destructively measure non-magnetic coating thickness on a magnetic metal substrate, as well as non-metallic coating on non-magnetic metal substrate.

The GT231 will automatically detect the magnetic metal substarte or non magnetic metals substarte.

This device includes rechargeable batteries and full colour screen display.

Comes with hrd plastic carry case and Lanyard

Includes calibration plates and 5 caibration standards
