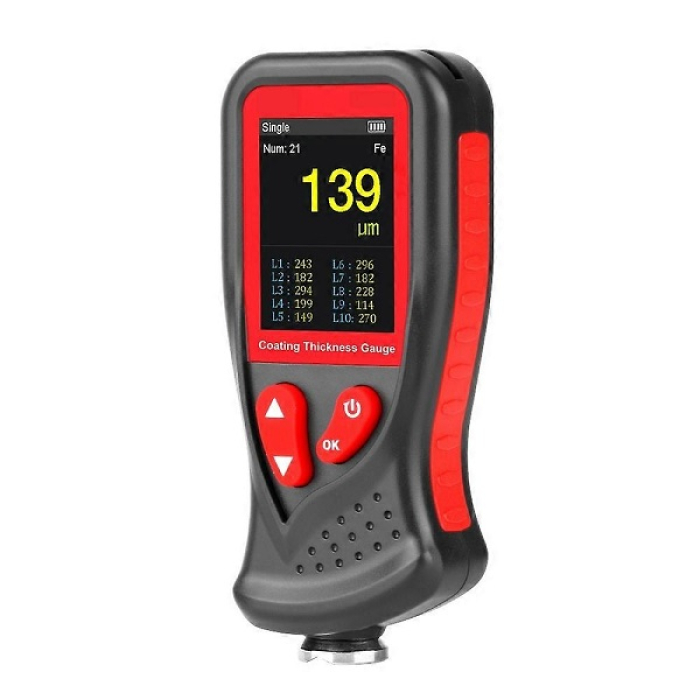

GT230 Film/Coating Thickness Gauge
Measurement range: 0~1300um/0~51mil
Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)
Minimum diameter of magnetic metal substrate: 12mm
Minimum thickness of magnetic metal substrate: 0.5mm
Minimum radius of curvature for magnetic convex substrate: 2mm
Minimum radius of curvature for magnetic concave substrate: 11mm
Minimum thickness of non-magnetic metal substrate: 0.5mm
Includes Rechargeable Batteries and USB Charge Cable
Includes Calibration plates and 5 calibration standards
Comes with Belt Pouch holder and Lanyard
Features:
The GT230 Portable Coating Thickness Meter, with high definitrion display, can quickly and non-destructively measure non-magnetic coating thickness on a magnetic metal substrate, as well as non-metallic coating on non-magnetic metal substrate. The GT230 will automatically detect the magnetic metal substarte or non magnetic metals substarte.
This device includes rechargeable batteries and full colour screen display.
Specifications:
Measurement range: 0~1300um/0~51mil
Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)
Minimum diameter of magnetic metal substrate: 12mm
Minimum thickness of magnetic metal substrate: 0.5mm
Minimum radius of curvature for magnetic convex substrate: 2mm
Minimum radius of curvature for magnetic concave substrate: 11mm
Minimum thickness of non-magnetic metal substrate: 0.5mm
Battery: 1000 mAh Lithium battery (weight 36.5g) or 5V1Apower adapter
Size: 52.90*26*117mm
Weight: 103g (including battery)
Includes Rechargeable Batteries and USB Charge Cable
Includes Calibration plates and 5 calibration standards
