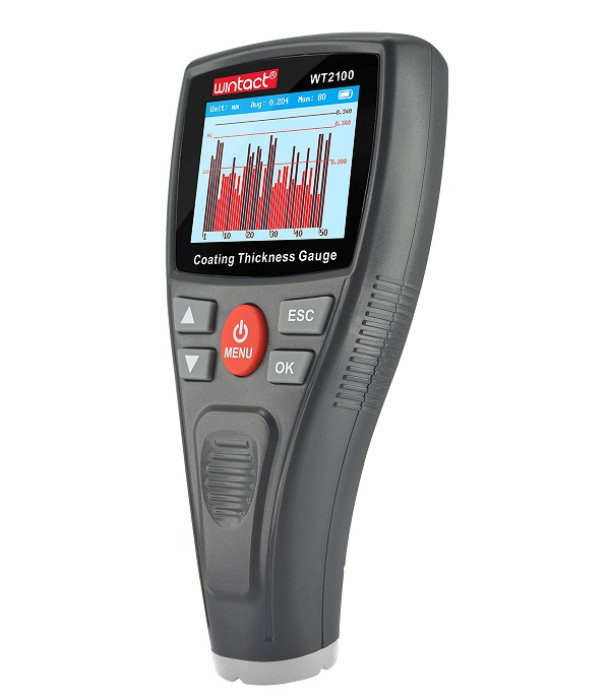

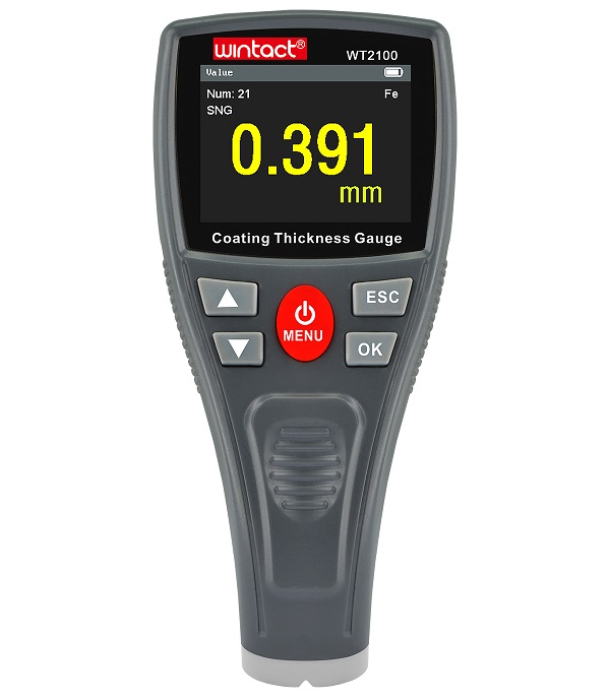

WT2100 Film/Coating Thickness Gauge
This product is a color-screen portable coating thickness gauge with high-definition display.
It can quickly, non-destructively and accurately measure the thickness of non-magnetic coating (such as paint, electroplate, thin film, etc.) on magnetic metal substrates.
It is widely used in manufacturing, metal processing,chemical industry, commodity inspection and other testing areas.
Features:
- Menu operation on full color-screen HD display. (screen brightness selection)
- Measurement of Non-magnetic coating thickness measurement on magnetic metal substrate surface.
- Two measurement methods: single measurement, continuous measurement.
- Three calibration modes: basic, offset, zero calibration.
- Metric/imperial unit
- Storage function.
- Screen rotation, charge protection, multi-interface displays,
- Automatic shutdown.
Specifications:
Measurement range: 0~1800um/0~70.9mil
Resolution: ( 0.1μm(<100μm),1μm(≥100μm))/ 0.1mil/0.001mm
Measurement error: ≤150μm ±5μm >150μm ±(3%H+1μm)
Minimum diameter of magnetic metal substrate: 12mm
Minimum thickness of magnetic metal substrate: 0.5mm
Minimum radius of curvature for magnetic convex substrate: 2mm
Minimum radius of curvature for magnetic concave substrate: 11mm
Battery: 3x1.2V NiMH battery (weight 36.5g) or 5V1Apower adapter
Size: 70.30*38.6*149.59mm
Weight: 136.9g (including battery)
