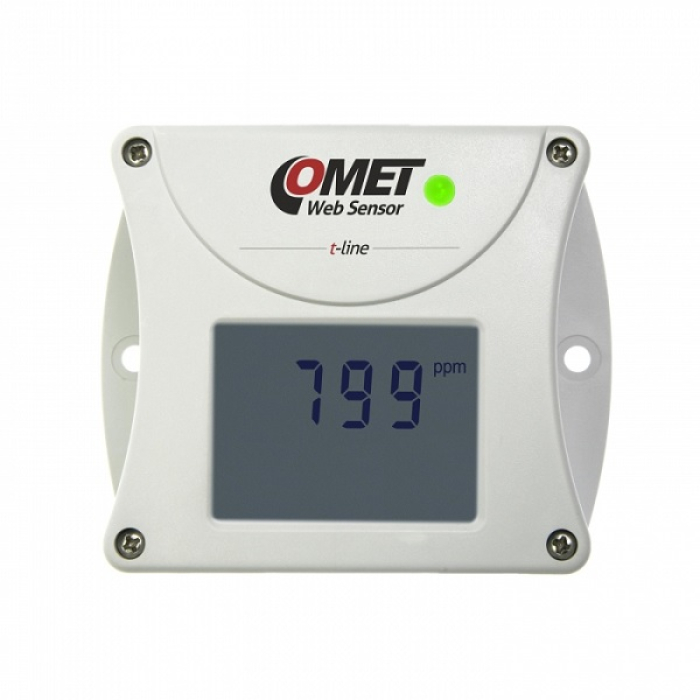

T5540 - WebSensor - Remote Monitoring CO2 Concentration With Ethernet Interface

Features:

A multiple point CO₂ and temperature adjustment procedure leads to excellent CO₂measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications.

The dual wavelength NDIR CO₂ sensing procedure compensates automatically for ageing effects.

The CO₂ module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

Green LED shines - CO₂ concentration 0 to 1000 ppm

Yellow LED shines - CO₂ concentration 1001 to 1200 ppm

Red LED shines - CO₂ concentration 1201 ppm and more

Specifications:

Measuring range CO₂: 0 to 2000 ppm
Output: ethernet TCPIP
Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution: 1 ppm
Operating temperature: -30 to +60 °C
Channels: internal CO₂ sensor
Measuring interval: 15 s
Communication protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail, SNMP Trap, Syslog
Power 9-30 Vdc
Protection class IP30
Dimensions 88,5 x 72,5 x 39,5 mm
Weight approx. 140 g
Warranty 3 years
