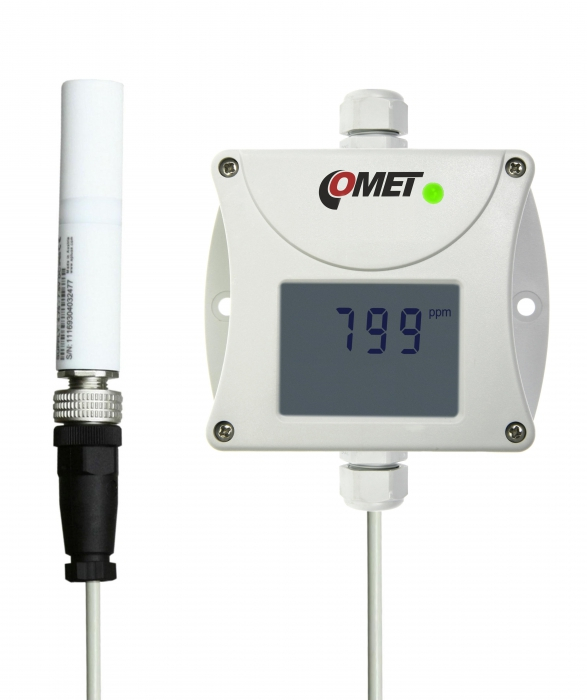

T5141 - CO2 - Carbon Dioxide Level Sensor

Code: 4171

CO2 concentration transmitter with 4-20mA output

Measuring range CO2: 0 to 10 000 ppm
Accuracy:±(110ppm +5% from reading) at 25°C and 1013hPa
Resolution:1 ppm
Operating temperature: -30 to +80 °C
Channels: 1x external CO2 sensor
Output:4-20 mA

Features:

CO2 concentration transmitter with 4-20mA output is built in a durable watertight case.

Output range is user adjustable.

Large dual line LCD is an advantage.

Display is possible to switch off.

The device is supplied with CO2 probe with 1m cable.

Cable lengths 2, 4 or 10 meters available optionally.

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more.

Specifications:

Measuring range CO2: 0 to 10 000 ppm
Accuracy:±(110ppm +5% from reading) at 25°C and 1013hPa
Resolution:1 ppm
Operating temperature: -30 to +80 °C
Channels: 1x external CO2 sensor
Output:4-20 mA
Configuration of output user adjustable from PC; measured range + value
Power 9-30 Vdc
Protection class IP65
Dimensions 88,5 x 94 x 39,5 mm
External probe cable length CO₂ 1 meter (optionally 2, 5, 10 meters)
Weight approx. 250 g
Warranty 3 years
