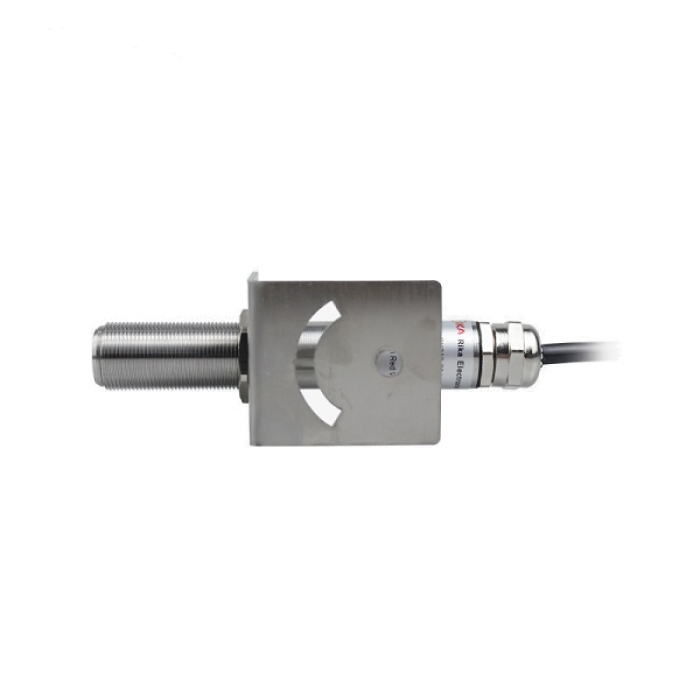

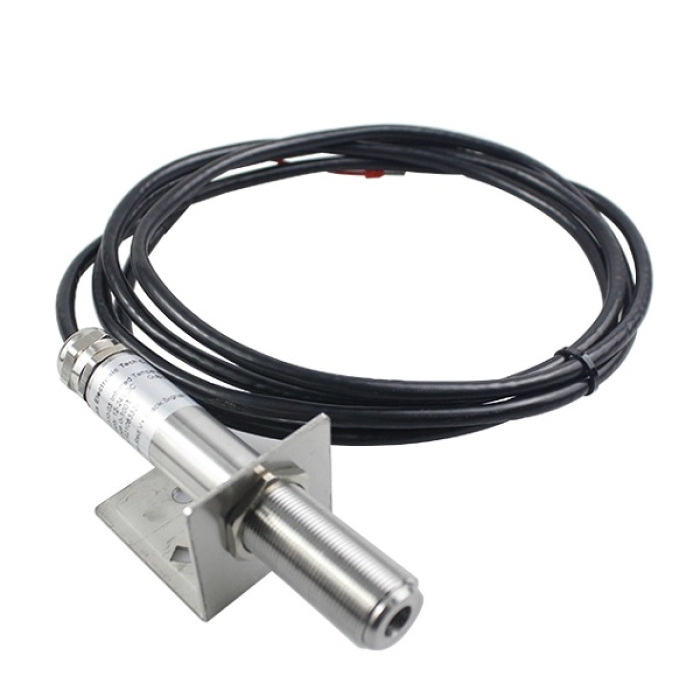

RK310-03 IR Thermometer
Code: 5046
- Compact, Robust Digital IR Thermometer (Transmitter)
- Measuring range of 0 – 100 C, with automatic range shift.
- 12 -24VDC Supply
- 4-20mA Output
- Emissivity: 0.95
Features:
RK310-03 Infrared Temperature Sensor is a sensor that calculates the surface temperature of the object by measuring the infrared radiation intensity emitted by the measured object.
Non-contact temperature measurement is the biggest advantage of infrared temperature sensor, the user can easily measure the object which is difficult to approach or move.
The RK310-03 is an integrated infrared temperature sensor.
The sensor, optical system and electronic circuit are integrated in a stainless-steel housing.
Easy to install, standard thread on the metal housing can be quickly connected to the installation site.
Specifications:
- Compact, Robust Digital IR Thermometer (Transmitter)
- Measuring range of 0 – 100 C, with automatic range shift.
- 12 -24VDC Supply
- 4-20mA Output
- Accuracy 1% Full Scale
- Emissivity: 0.95
- Operating Temperature: -20C to 80C
- IP65 rating
