MQP-FG-CO2 (ATEX Rated)
Detection of gas: Carbon Dioxide (CO2)
Measuring range: 0-5% CO2
ATEX Rating: II 2G EX db IIC T6; IP66 (IEC 61508:2010)
Power: 18-36V DC
Display: Backlit LCD Display
Relay Output: 2 x 3A 250VAC/30VDC programmable
Analogue Output: 4-20mA Output
Communications: Modbus RS485
This devices includes a removable STROBE and SIREN
This product includes Calibration certificate.
Features:

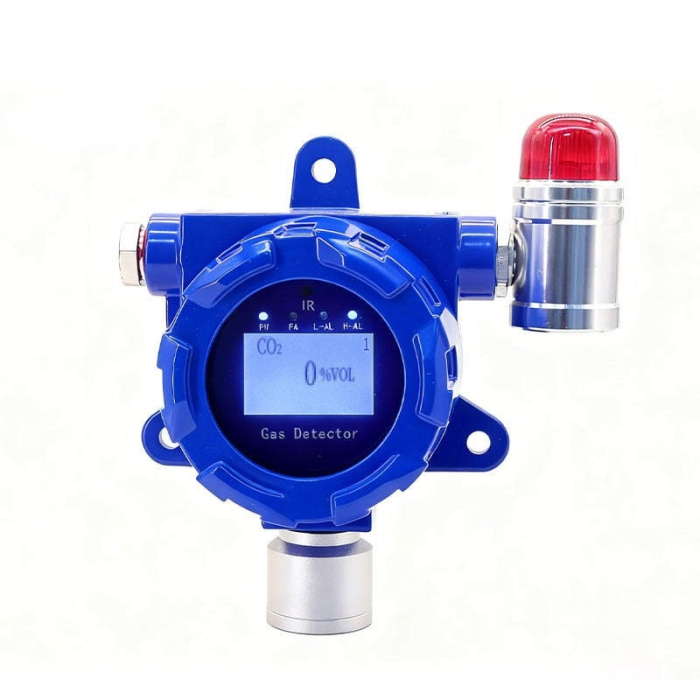

This Wall Mount Fixed Gas Carbon Dioxide (CO2) sensor comes in an Industrial Flame Proof Metal enclosure.
The device has a built in Audible and Visual Alarm (Strobe and Siren), with 2 configurable relay outputs.
Remote monitoring via RS485 Modbus Interface and 4-20mA output signal.
ATEX rated for high risk areas.
The device comes standard with Calibration certificate, as well as remote control for wireless programming.
Specifications:
Detection of gas: Carbon Dioxide (CO2)
Measuring range: 0-5% CO2
ATEX Rating: II 2G EX db IIC T6; IP66 (IEC 61508:2010)
Power: 18-36V DC
Display: Backlit LCD Display
Relay Output: 2 x 3A 250VAC/30VDC programmable
Analogue Output: 4-20mA Output
Communications: Modbus RS485
This devices includes a removable STROBE and SIREN
This product includes Calibration certificate.
