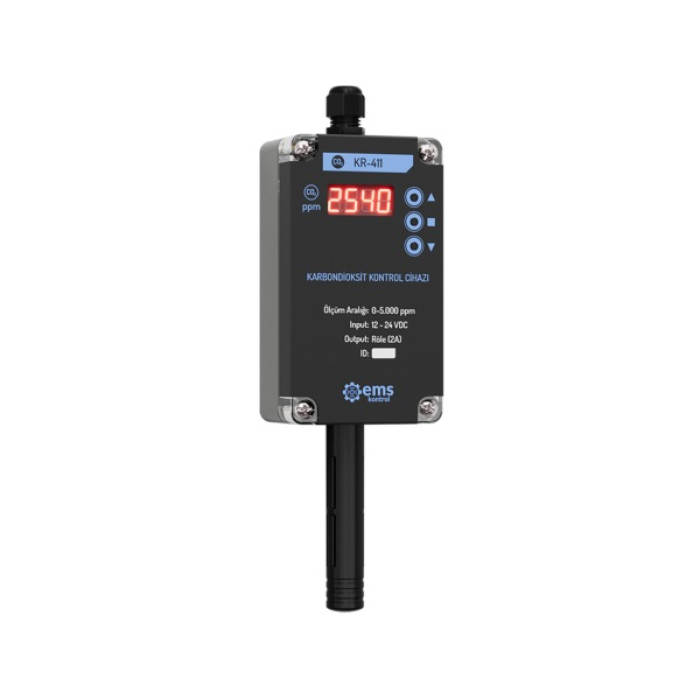

KR-411 Carbon Dioxide (CO2) 4-20mA Transmitter

Code: 5090

Carbon Dioxide (CO2) concentration transmitter with 4-20 mA output
Measuring range CO2: 0 to 10 000 ppm
Output 4 - 20mA and 1 x Relay (2A)
Accuracy: ±50 ppm
Resolution: ±10 ppm
Channels: internal CO2 sensor
Power 12-24 Vdc
Manufacturer Warranty 2 years

Features:

The KR-411 Carbon Monoxide (CO2) Transmitter and control device allows you to accurately Measure the ambient CO2 levels.

The Measurements can be transmitted via 4-20mA signal to your BMS or PLC etc.

The onboard 2A relay output can be configured to trifger a strobe or Siren, or interface directly into a PLC or BMS system.

Features:

Accurate and Precise Measuring

1 x Relay Output

2 Years Sensor Operating Life

Easy Replaceable Sensor

Easy Assembling

Adjustable Relay Sensitivity

Specifications:

Carbon Dioxide (CO2) concentration transmitter with 4-20 mA output
Measuring range CO2: 0 to 10 000 ppm
Output 4 - 20mA and 1 x Relay (2A)
Accuracy: ±50 ppm
Resolution: ±10 ppm
Operating temperature: -30 to +60 °C
Channels: internal CO2 sensor
Configuration of relay output user adjustable
Power 12-24 Vdc
Dimensions 215 x 65 x 40 mm
Weight approx. 145 g
Manufacturer Warranty 2 years
