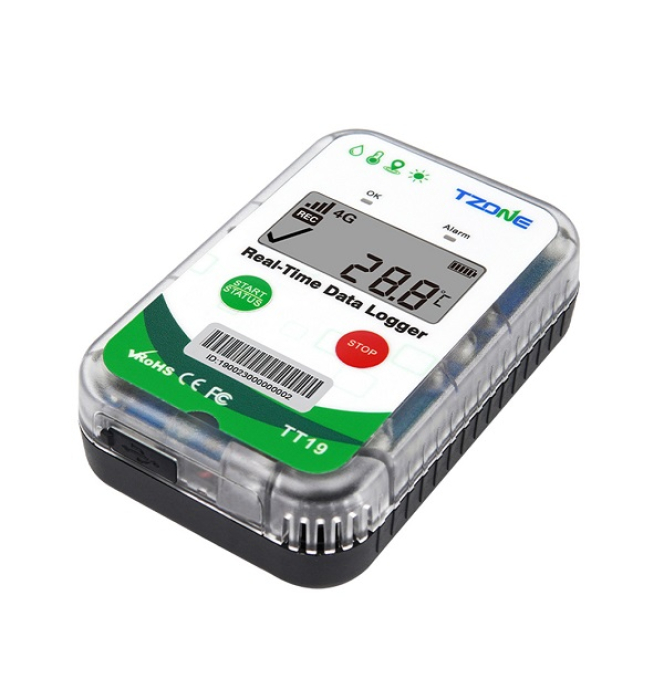

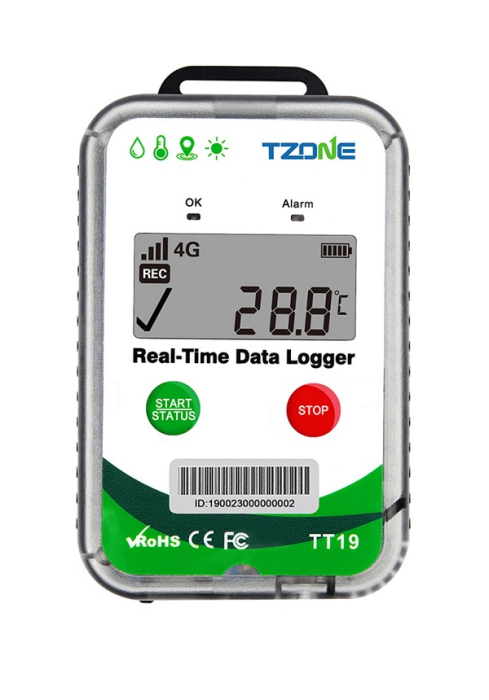

TT19 - Temperature Humidity Location GSM Logger
Operating Period: 60 Days (Rechargable)
Transmit Interval: 60 minutes
Usage: Re-usable (Recharge required if battery flat afer 60 days)
Transmission Mode: 2G/4G
Memory Capacity: 17 000 readings
Parameters Measured: Temperature, Humidity, Lux, Vibration and Location
Operating Temperature: -20C to 60C
Temperature Accuracy: 0.3C
Humidity Accuracy: 3% RH
Features:
The TT19 - GSM Logger is a multi-use, real-time data logger used for monitoring temperature, humidity, and location, primarily in cold-chain logistics.
It uses a cloud platform for live data access and reporting.
Key features
Real-time monitoring: Monitors temperature, humidity, location (using 4G, GPS, and Wi-Fi), light exposure, and vibration in real-time.
Cloud platform: Data is automatically uploaded to the Tzone cloud platform for live monitoring, alerts, reporting, and full shipment traceability.
Battery life: A built-in 4000mAh lithium battery can power the device for up to 60 days on a single charge (with a default 1-hour posting Interval)
Automated reports: The logger can generate automated PDF reports, which can be downloaded directly via a USB port or from the cloud platform.
Durability: Features an IP64 waterproof rating, allowing it to withstand harsh transport environments.
Wide application: Commonly used for tracking shipments of pharmaceuticals, food and beverages, and chemicals in refrigerated containers and trucks
How to use the TT19
Register on the cloud platform: Before using the device, you must register for an account on the Tzone cloud platform at cloud.tzonedigital.com.
Turn on the device: Press and hold the "START" button for more than three seconds. The "OK" LED will turn green and the LCD screen will activate.
Add the device: Log in to your cloud account and add the logger by entering its unique ID in the "Device Management" section.
Monitor and track: Once connected, you can monitor the data and track the location in real-time through the cloud platform.
Stop and download data: To stop a logging session, press and hold the "STOP" button for more than three seconds. The recorded data can then be downloaded directly by connecting the device to a computer via USB
Specifications:
Operating Period: 60 Days (Rechargable)
Transmit Interval: 60 minutes
Usage: Re-usable (Recharge required if battery flat afer 60 days)
Transmission Mode: 2G/4G
Memory Capacity: 17 000 readings
Parameters Measured: Temperature, Humidity, Lux, Vibration and Location
Operating Temperature: -20C to 60C
Temperature Accuracy: 0.3C
Humidity Accuracy: 3% RH
