THT04 - Temperature Humidity Sensor (4-20mA Outputs)

Features:

Temperature and Humidity 4-20mA Transmitter - Low Cost Unit

This Low Cost Temperature Humidity HVAC 4-20mA Transmitter without Display is perfect for most monitoring applications.

The THT04 Temperature and Humidity sensor with 2 x 4-20mA outputs is perfect for most industrial applications, these include some of the following industries: building HVAC management building HVAC automation warehouses glasshouses manufacturers museums, archives, galleries air-conditioned rooms weather stations

This Temperature Humidity HVAC 4-20mA Transmitter comes without Display, and is equipped with temperature and relative humidity sensors.

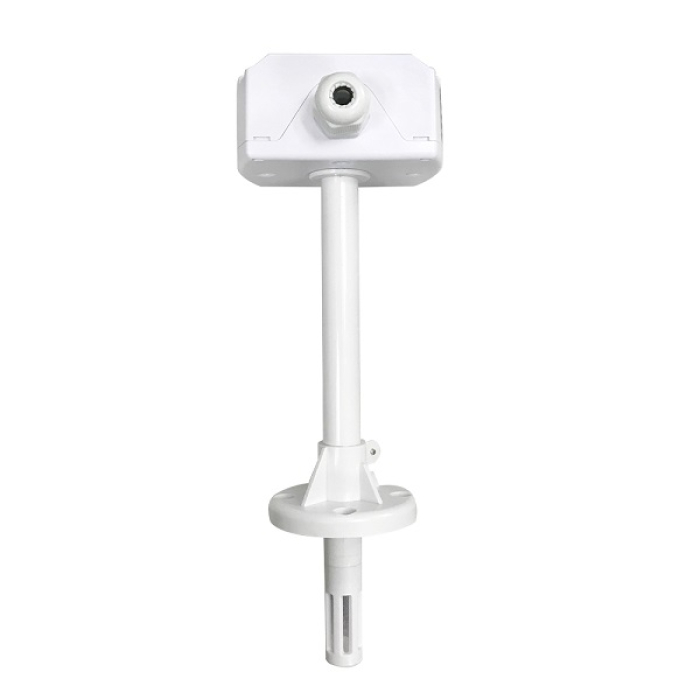

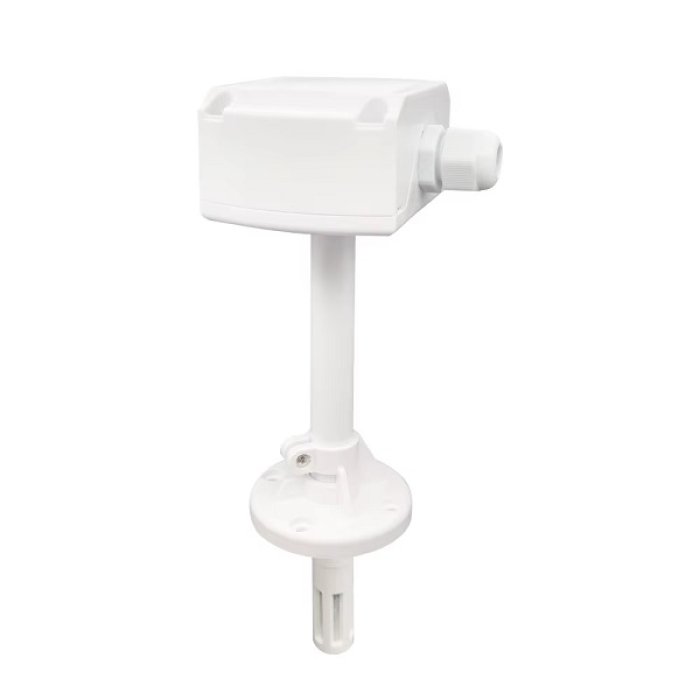

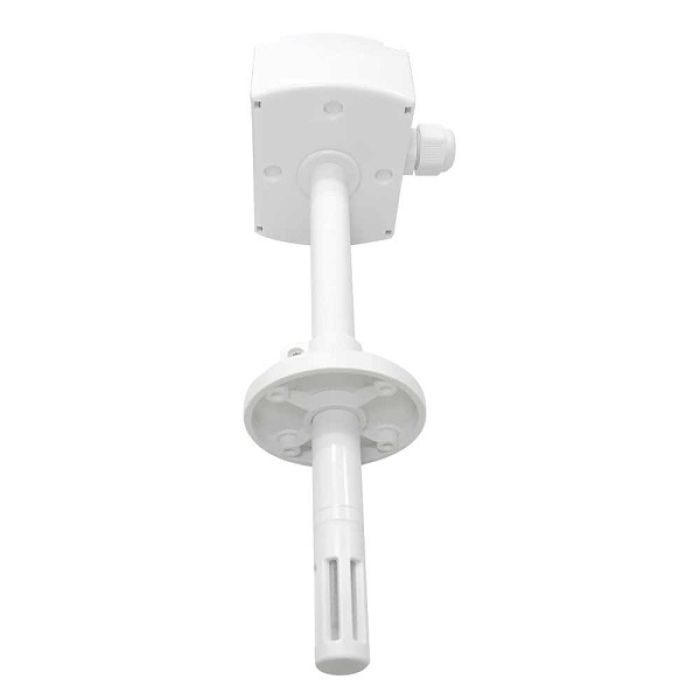

The Temperature Humidity  Transmitter comes in a plastic case, with connection terminals and sensors in a filter with mesh.

Transmitters are designed for use in non-aggressive environment.

Outputs are set to maximum range from the manufacturer -20 to +80°C and 0 to 100%RH.

This device does not include calibration certificate

Specifications:

Duct Mount Temperature Humidity Transmitter with 2 x 4-20mA outputs

Temperature range: -20 C to +80 C

Humidity Range: 0-100%

Power: 12 – 24Vdc

Does Not include Calibration Certificate.
