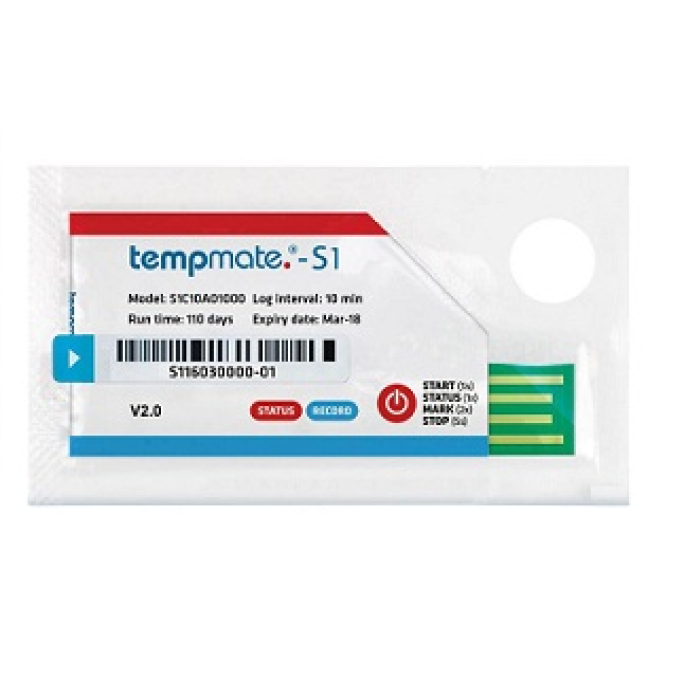

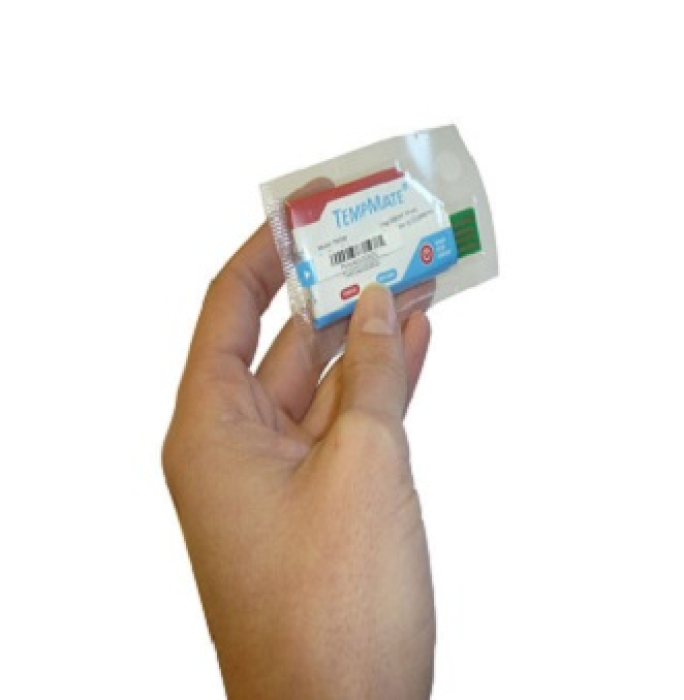

S1 Disposable Temperature Logger (USB)

Features:

Tempmate S1 Version 2 temperature data loggers were developed for monitoring temperature-sensitive products throughout the entire cold chain.

Thanks to customer-specific settings being made directly in our factory, the S1 Version 2 data loggers are ready for immediate use recording the relevant refrigeration data.

The S1 Disposable Logger automatically creates PDF and CSV reports, that contain extensive information that you can use to assess the goods being monitored:

data curve, statistical values such as MIN, MAX, AVG, MKT and every single measurement value shown in tabular form.

Specifications:

Data logger type: Single-Use data logger
Temperature range: -30°C to +70°C (-22°F to 158°F)
Accuracy: ±0.5°C/0.9°F (-20°C/+40°C) otherwise ±1.0
Resolution: 0.1°C/°F
Storage capacity: 16,000 measurements
Life/Battery: 2 years/CR2450 button cell battery
Measurement interval: 10 minutes (standard – other options on request)
Recording time: 110 days (standard – other options on request)
Startup method: Manual start or via the V2 software.
Stop method: Manual stop, Tempbase®-D V2 or automatically when full.
Alarm type: Single or cumulative. Up to 5 points.
Protection class: IPE67/NEMA 6
Dimensions: 88mm x 47mm x 7mm [L x W x H]
Weight: approx 14.6g
Certified: EN12830, CE, RoHS
Validation certificate: Printout and stored on logger
Software: PDF or CSV reader / Optional base.®-D V2
Automatic report: PDF and CSV
PC connection: USB 2.0, Type A
Alarm configuration: Optional up to 5 alarm thresholds
Programmable: Optionally via tempbase.®-D V2
Delivery contents: Dispatch documents, certificate, writeable label and sealeable pouch
