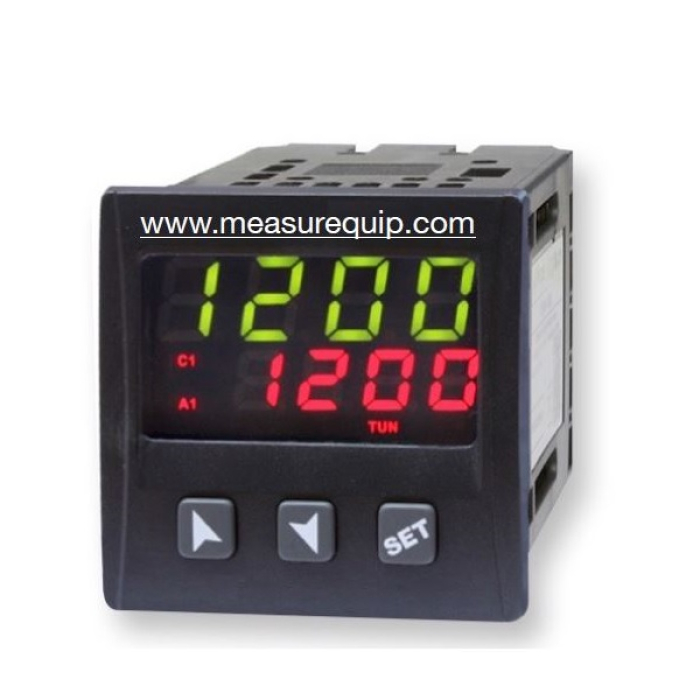

RST48-2R – Temperature Controller PID

Code: 4747

Digital Temperature Controller (Universal Input)

Analogue input - Thermocouple type K, S, R, J, T, E, N, B. - Thermo-resistance: PT100,PT500, PT1000, Ni100,PTC1K, NTC10K. - Input V/I: 0-10 V, 0-20 or 4-20 mA, 0-60 mV. - Pot. input: 6 kOhm, 150 kOhm.
Power supply 24..230 Vac/Vdc ±15% 50/60 Hz
Consumption: 5.5 VA.
Relay outputs: 2 relays Contacts: 5 A - 250 V~.
SSR output: SSR - 12V/30mA.
50 x 50mm face (45 x 45mm panel cut out)
Includes 1 year warranty

Features:

The RST48-2R PID Temperature Controller makes available in a single device multiple options related to sensor input and actuators command in addition to the extended power range 24..230 Vac/Vdc.

With the various selectable sensors and the output configurable as relay or SSR command.

This Temperature transmitter is prefect for PID Temperature control or Alarm output via 2 onboard configurable Relays and SSR output.

This Temperature Transmitter can accept various Temperature probes, from Thermocouples, PT100, PT500, PT1000, Ni100, PTC1K, NTC10K, as well as Analogue input 4-20mA and 0-10V and Potentiometer Input.

Specifications:

Digital Temperature Controller (Universal Input)

Analogue input - Thermocouple type K, S, R, J, T, E, N, B. - Thermo-resistance: PT100,PT500, PT1000, Ni100,PTC1K, NTC10K. - Input V/I: 0-10 V, 0-20 or 4-20 mA, 0-60 mV. - Pot. input: 6 kOhm, 150 kOhm.
Power supply 24..230 Vac/Vdc ±15% 50/60 Hz
Consumption: 5.5 VA.
Relay outputs: 2 relays Contacts: 5 A - 250 V~.
SSR output: SSR - 12V/30mA.
50 x 50mm face (45 x 45mm panel cut out)
Includes 1 year warranty
