RK520-01 – Moisture Transmitter

Features:

Contact Humido-transmitter for monitoring moisture content, by placing the probes into the substance.

The device is suitable for moisture Measurement 0-100%

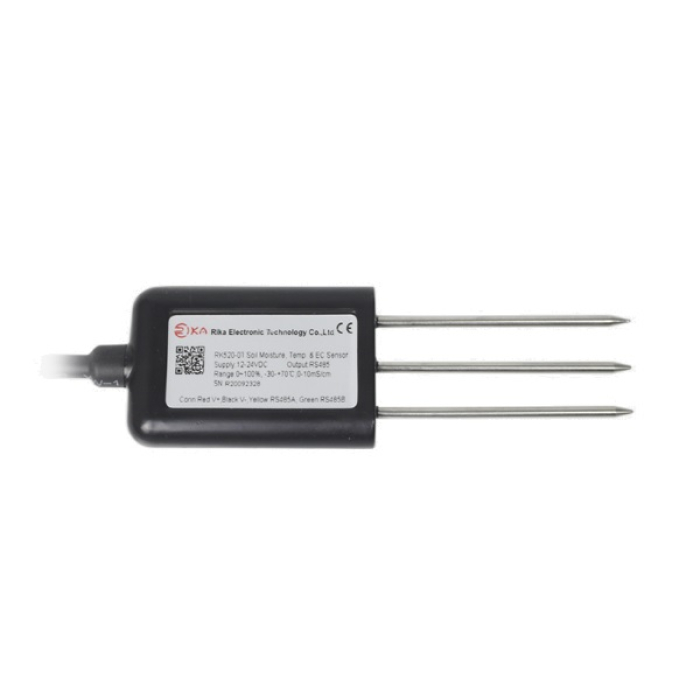

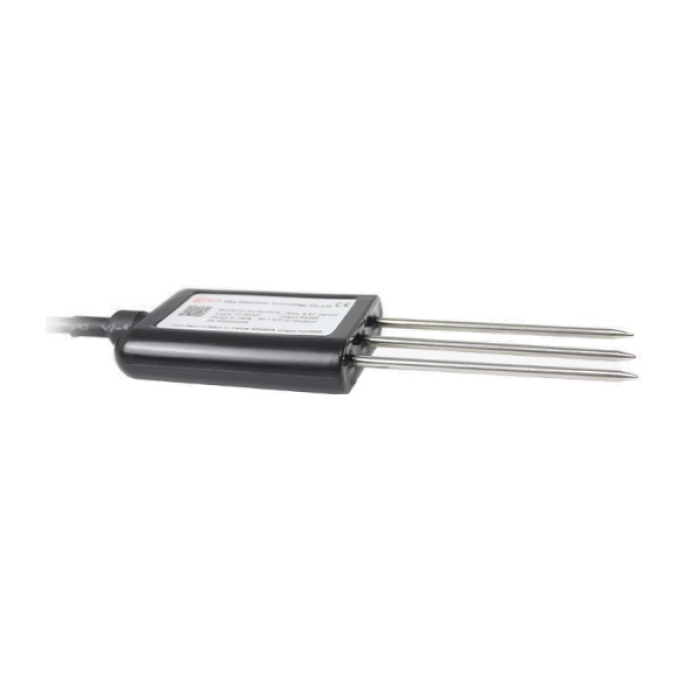

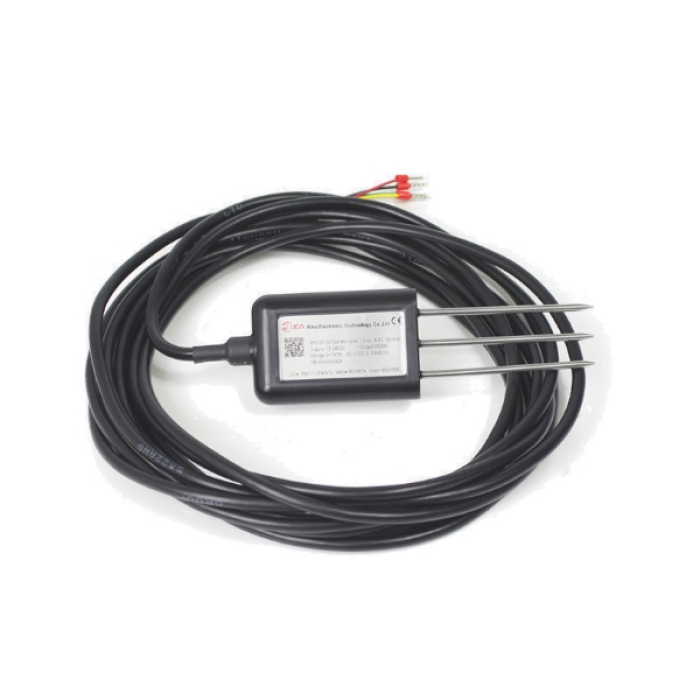

High Quality Moisture Transmitter. RK520-01 Soil Moisture & Temperature Sensor to integrate the moisture and temperature measurement.

The stainless steel probe is inserted into soil surface or soil profile to test soil moisture and temperature quickly.

Moisture measurement part is designed on the basis of the principle of FDR, by measuring the dielectric constant of the soil in order to measure the volume of the soil moisture content, temperature part adopts precision platinum resistance element, the product built-in drift calibration and temperature compensation circuit, can adapt to most applications.

The probe can be permanently embedded underground and be connected to a data logger for unlimited testing.

This device is is CE certified, so you know you are getting a quality product.

Specifications:

• Moisture Measurement Range: 0% to 100%
• Temperature Measurement Range: -30°C - 70°C
• Signal Output: 4-20mA
• Input Voltage: 12-24 VDC
• Protection: IP67
• Probe Material: 316 Stainless Steel
