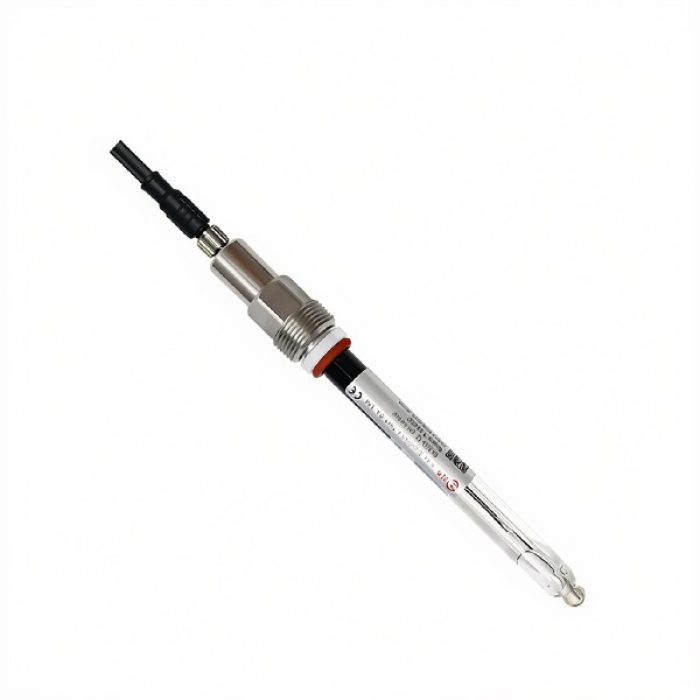

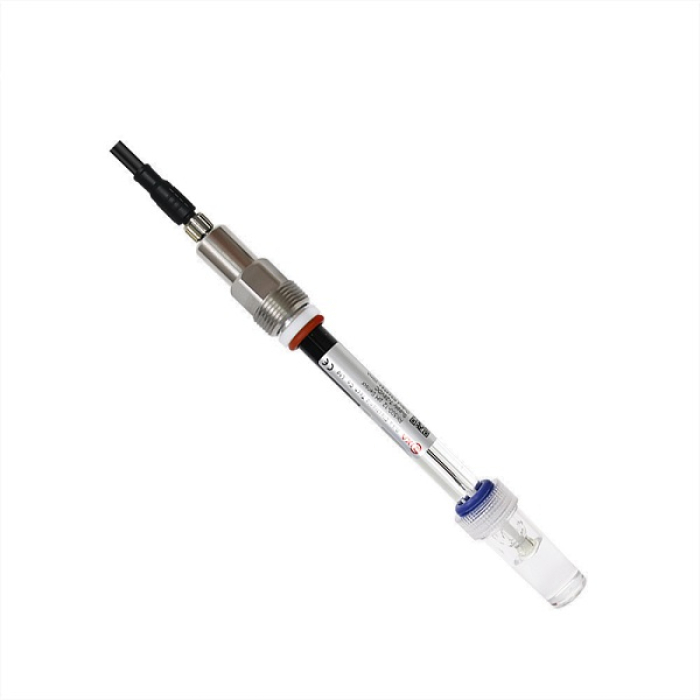

RK500-12 pH Liquid (4-20mA and RS485) B3
Material: Glass and 316L
Range: 0-14 pH
Supply: 7-30VDC (power consumption<0.2W)
Accuracy: ±0.05PH
Resolution: 0.01PH
Output Signal: 4-20mA & RS485 at the same time
Operating Environment: 0-+100℃ (upto 1 MPa)
Cable length: 5m
Ingress Protection: IP68
Storage: 10-60℃@20%-90%RH
Features:
The RK500-12-B3 is a cutting-edge pH monitoring sensor engineered to excel in demanding industrial, environmental, and high-temperature applications, redefining precision and reliability in sensor technology.
Designed with a robust construction of Glass+316L materials, this sensor ensures long-term durability even in harsh environments, combining chemical resistance with structural strength.

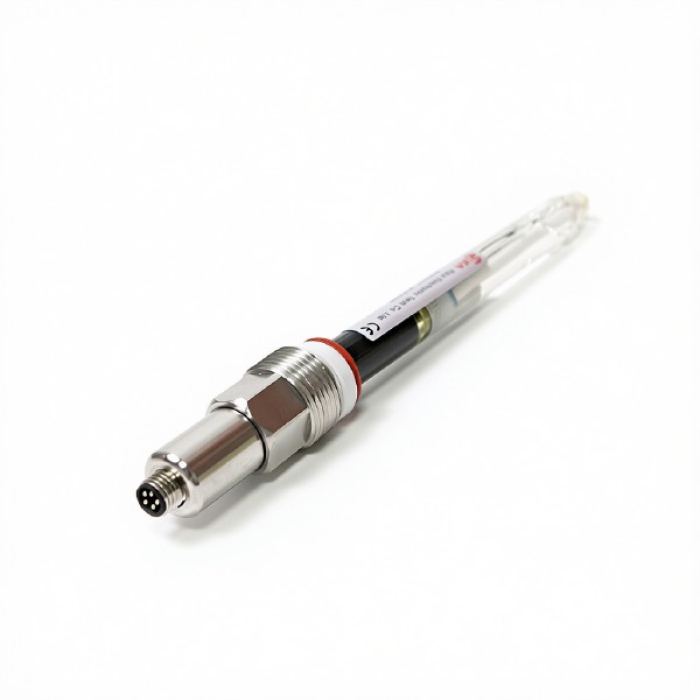

Operating seamlessly across a wide temperature range of 0-100°C and handling pressures up to 1MPa, it features a versatile PG13.5 thread and M8 waterproof connector for easy integration into existing systems, while its IP68 ingress protection guarantees performance in wet or submerged conditions
Specifications:
Material: Glass and 316L
Range: 0-14 pH
Supply: 7-30VDC (power consumption<0.2W)
Accuracy: ±0.05PH
Resolution: 0.01PH
Output Signal: 4-20mA & RS485 at the same time
Operating Environment: 0-+100℃ (upto 1 MPa)
Cable length: 5m
Ingress Protection: IP68
Storage: 10-60℃@20%-90%RH
