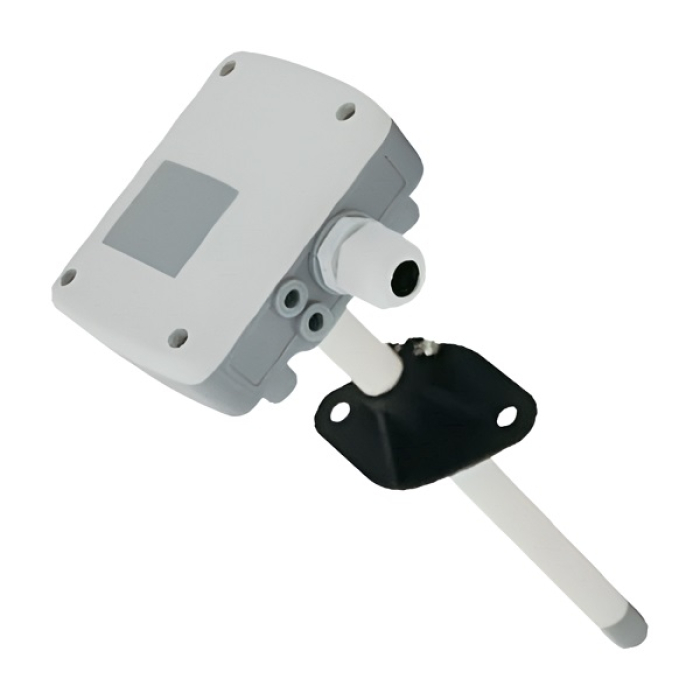

RK100-05 Hot Wire Anemometer (0-30m/s)

Features:

RK100-05 HVAC Wind Speed Sensor with 4-20mA output is designed on the basis of the principle of hot-wire, the probe and housing adopt resistance to high temperature and anti-corrosion materials.

If installed in a harsh environment, the sesnor will continue to work stablely and reliably.

The RK100-05 can quickly and accurately detect tiny air flow measurement. The sensor can measure win speed from 0-30m/s.

The product has realized high precision and high resolution through internal linear compensation and temperature calibration, and long term stability is extremely good.

Please ensure the device is installed in the correct wind direction.

Specifications:

Output: 4-20mA

Supply: 12-24VDC

Range: 0-30m/s

Response time: <1s

Accuracy(0-50℃): ±0.2%FS

Resolution: <0.05m/s

Power consumption: <80mA@24VDC(4-20mA)

Long-term stability: ±0.1m/s per year

Ingress Protection: IP55

Operating Temperature: -20℃-+70℃

Main material: ABS
