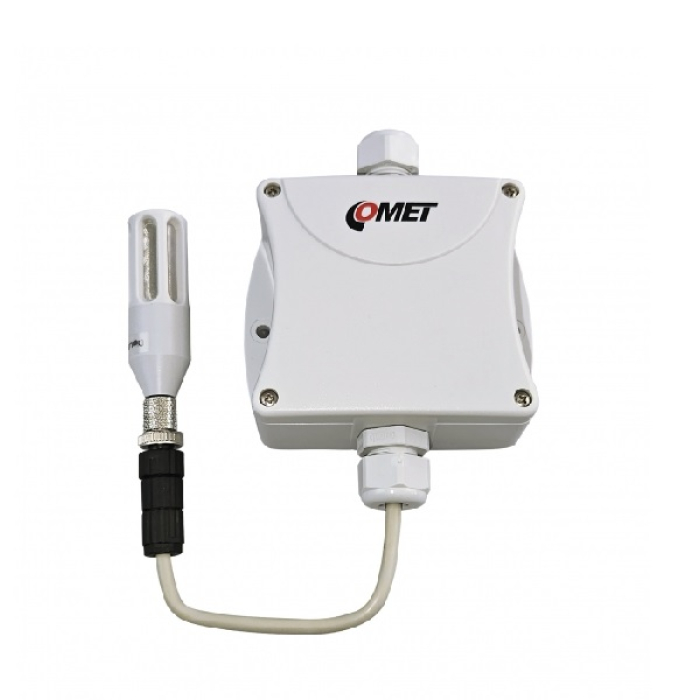

P3116 – Temperature Humidity (4-20mA Output)

Features:

This Cost Effective Temperature Humidity HVAC 4-20mA Transmitter without Display is perfect for most monitoring applications.

The P3116 comes complete with a 1 meter cable, calibration certificate and 3 year extended warranty, therefore putting you at ease knowing you have a tested, reliable product.

The P3116 Temperature and Humidity sensor with 2 x Galvanically Isolated 4-20mA outputs is perfect for most industrial applications, these include some of the following industries: building HVAC management building HVAC automation warehouses glasshouses manufacturers museums, archives, galleries air-conditioned rooms weather stations

This Temperature Humidity 4-20mA Transmitter comes without Display and includes a 1m cable, and is equipped with temperature and relative humidity sensors.

The P3116 Temperature Humidity 4-20mA Transmitter contains a microprocessor based control circuitry in a durable plastic case, with connection terminals and sensors in a filter with stainless steel mesh, thus ensuring it is robust enough for most applications.

This P3116 Temperature Humidity transmitter is equipped with two galvanic isolated 4-20mA outputs, therefore ensuring power surges do not damage this sensor.

Computerized design ensures temperature compensation of the Humidity Sensor and fail indication, ensuring the readings are always accurate.

State-of-the-art capacitive polymer sensor ensures excellent calibration long term stability, inertia against water and condensation.

Transmitters are designed for use in non-aggressive environment.

Outputs are set to maximum range from the manufacturer -20 to +80°C and 0 to 100%RH.

Specifications:

• Temperature Humidity Transmitter with 2 x 4-20mA output
• Interchangeable Head and 1 meter lead
• Temperature range: -20 C to +80 C
• Humidity Range: 0-100%
• Power: 9 – 30Vdc
• Includes Calibration Certificate.
• Includes 3 year extended warranty
