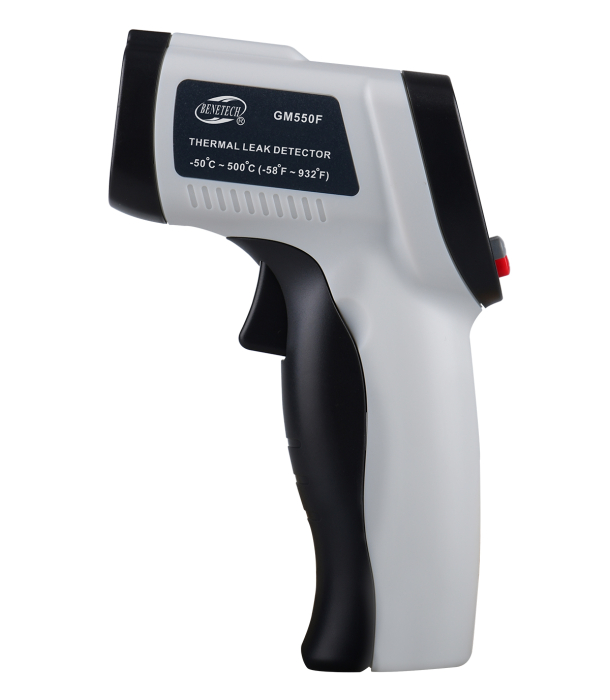

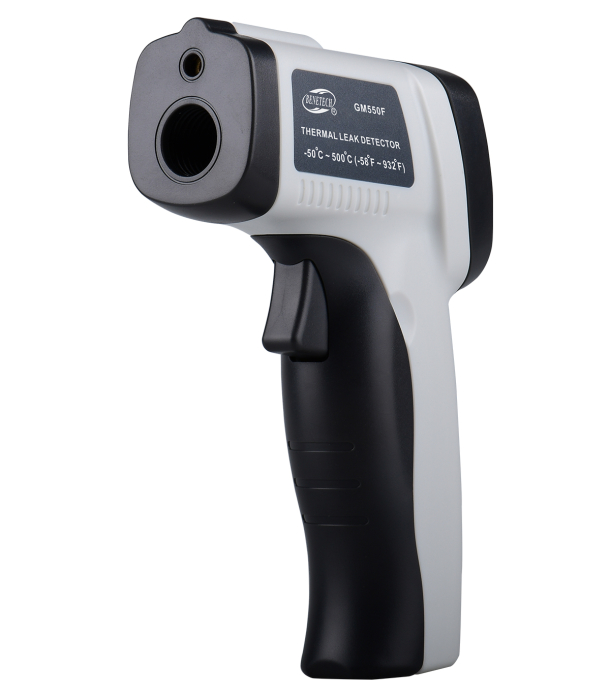

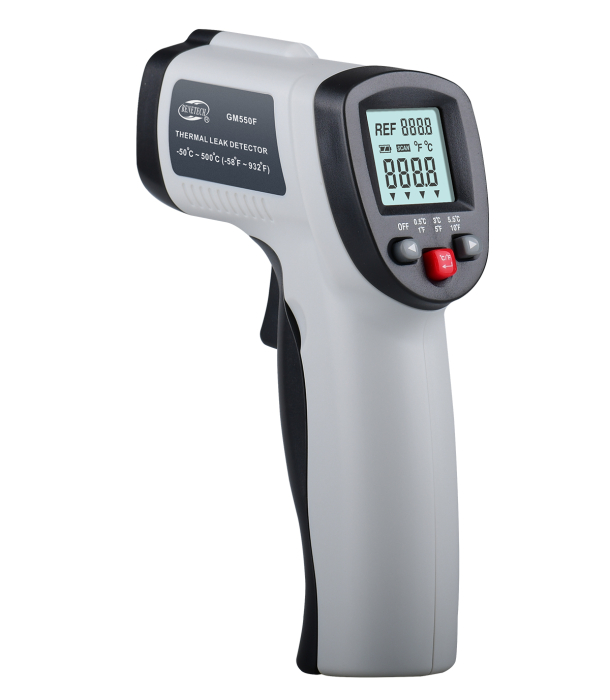

GM550F – Digital Infra Red Thermometer (-50C to 500C)
Code: 5064
- Temperature Range: –50°C to 500°C (–58°F to 932°F)
- Temperature Accuracy: ±1.5% or ±1.5°C
- Distance to Spot Ratio: 12:1
- Emissivity: 0.95 FIXED
- Analysis: 3 colour Indication.
- Temperature Alarm: High/Low
- Switch: °C/°F
- Laser: Yes
- Backlight: Yes
Features:
This instrument is composed of optical system,photoelectric sensor, signal amplifier,
signal processing circuit and LCD display, etc. Optical system transmits infrared
energy radiated from the object surface to photoelectric sensor, which converts
the energy into corresponding electrical signal. Processed by signal amplifier and
signal processing circuit, the signal is displayed on the LCD as digital reading.
Please note this IR thrmometer has a fixed emissivity of 0.95
Specifications:
- Temperature Range: –50°C to 500°C (–58°F to 932°F)
- Temperature Accuracy: ±1.5% or ±1.5°C
- Repeatability: ±1% or ±1°C
- Distance to Spot Ratio: 12:1
- Emissivity: 0.95 FIXED
- Display Resolution: 0.1°C/°F
- Response Time: 500ms
- Wave Length: 8 – 14μm
- Analysis: 3 colour Indication.
- Temperature Alarm: High/Low
- Switch: °C/°F
- Laser: Yes
- Backlight: Yes
- Auto Power Off: after 7 seconds without any operation
- Power: 9V Battery
- Weight: 224.2g (Including Battery)
- Dimension: 153*101*43mm

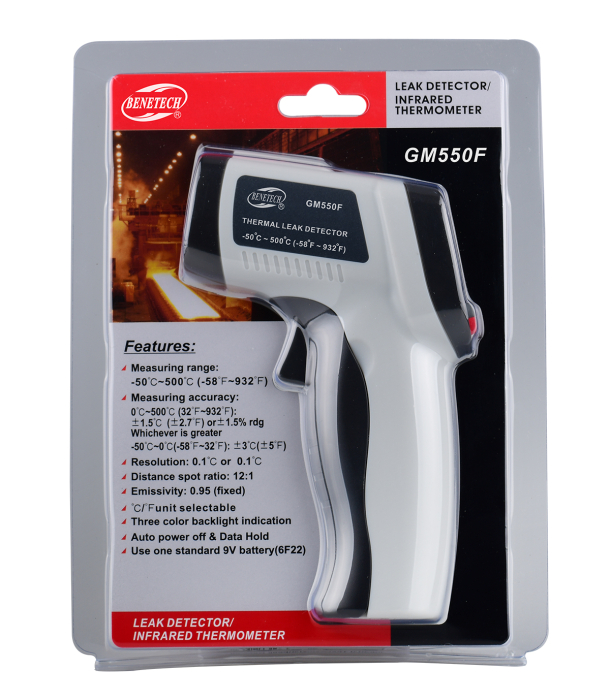

- Packaging: Card and Blister
