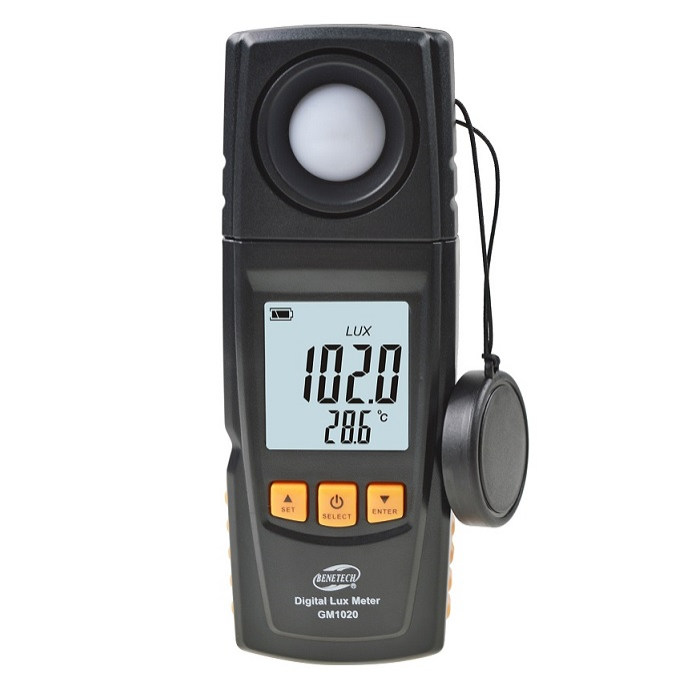

GM1020 Digital Lux Meter (Logger)
- Compact, Robust Digital Lux Meter (Logger)
- Statistical Data (Minimum and Maximum for Illuminance,Temperature, Illuminence Difference, Integrating Illuminance and Average Integrating Illuminance).
- Automatic Storage of Illuminance data (up to 1900 groups)
- Manual storage of Illuminance data (up to 60 groups)
- Wide measuring range of 0 – 200 000 lux, with automatic range shift.
- Includes Computer based analysis software and USB download cable (windows 7 Compatible).
- Hard Plastic Carry Case.
Features:
This Compact High Quality Robust Digital Lux Meter (Logger) GM1020 is used in Electro Optical sources, Research, Teaching, Agriculture and Industry Inspection etc.
This ergonomic device has a number of powerful on board functions, including Minimum and Maximum for Illuminance, Temperature, Illuminence Difference, Integrating Illuminance and Average Integrating Illuminance. Automatic Storage of Illuminance data (up to 1900 groups) as well as manual storage of Illuminance data (up to 60 groups)
Wide measuring range of 0 - 200 000 lux, with automatic range shift.
Includes Computer based analysis software and USB download cable, allowing the user to operate the unit with ease.
The unit is CE certified, so that you may be assured that you are getting a great quality product.

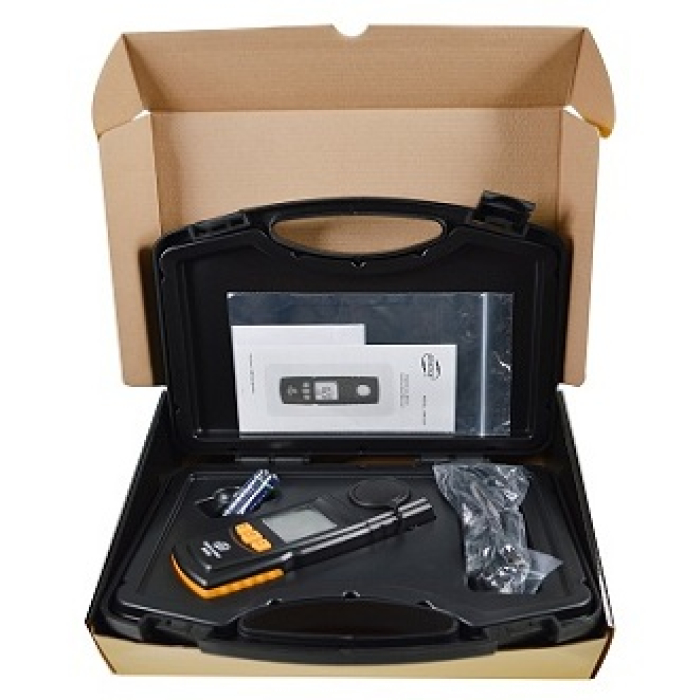

This device comes in a hard Plastic Carry Case.
The high contrast dual line LCD can show the current Lux and Temperature ambient surroundings simultaneously.
Min Max memory display.
Hold Function
Includes 2 x AAA 1,5V batteries
Specifications:
Measurable Objects: Illuminance and temperature ,Illuminance difference, maximum and minimum. (Illuminance and temperature,integrating illuminance and integrating time, and average integrating Illuminance )
Photoelectric element:Silicon diode
Thermal Probe: NTC Thermistor
Illuminance Measuring Range:Total measuring range: 0~200 000Lux
Lux into four ranges: x1 0~199.9Lux x10 200~1999.9Lux x100 2000~19999.9Lux x1000 20000~199999.9Lux
Temperature measuring range: 0~40℃
Temperature accuracy: ±1.0℃
Illuminance accuracy: ±3%rdg(below 10000Lux) ±4%rdg(above 10000Lux)
Units of Illuminance and Temperature: Four combinations of units are available.lux/℃ lux/℉ FC/℃ FC/℉
LCD Display up date frequency: Twice per second
Operating Temperature/humidity: 0~40℃ 10~90%RH
Storage temperature/humidity: -20~50℃ 10~90%RH
Power supply: Two AAA batteries
Battery life: 10 hours(continuous operation with a USB connection)
Auto shutdown: You can set an auto shutdown timer through LuxLAB
